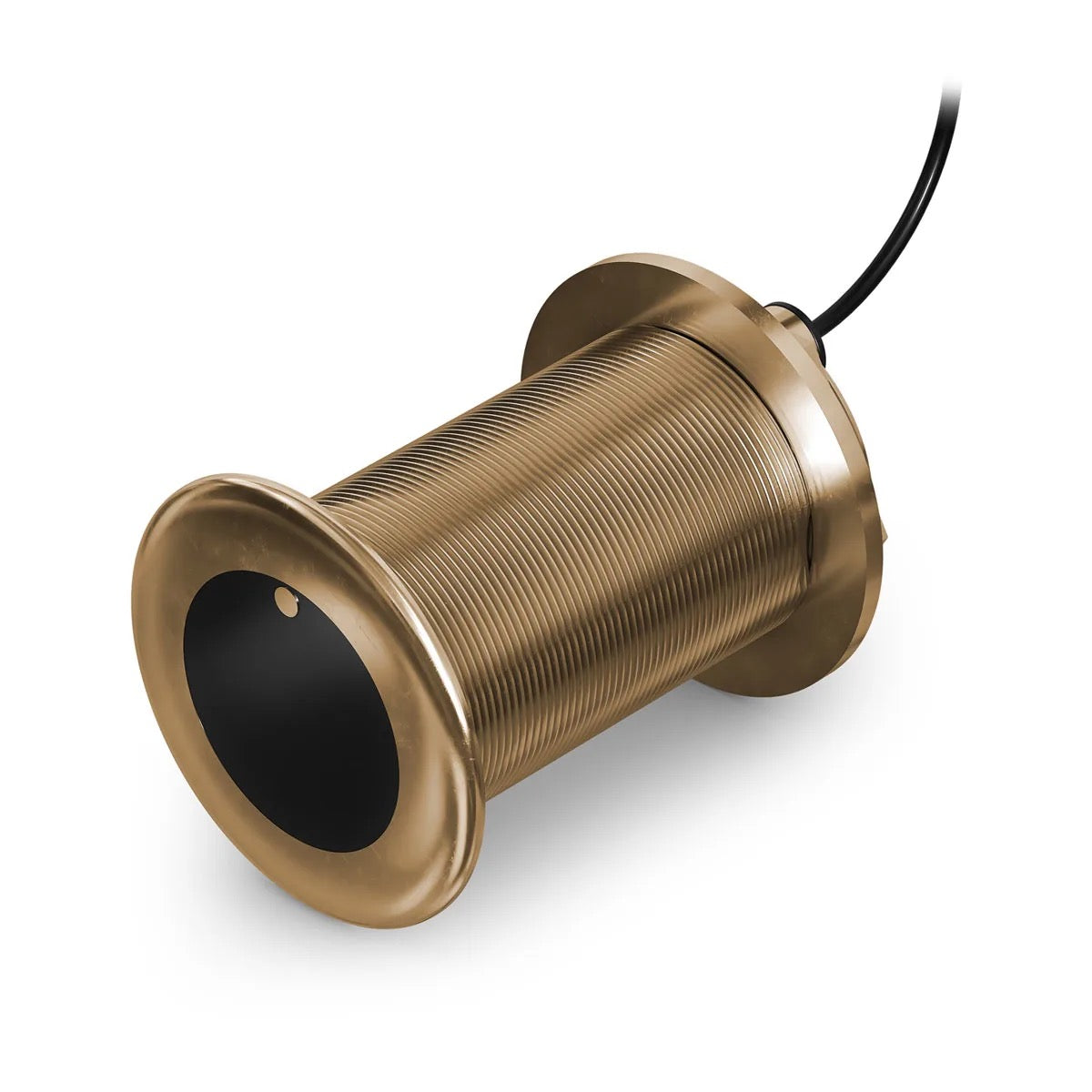

The Garmin GT12M-THF transducer is made of brass and is designed to be installed on fiberglass, wood, or composite hulls.

This model must not be installed on aluminum or steel hulls, as this would create galvanic corrosion that could lead to water ingress around the transducer.

To install the GT12M-THF transducer in a fiberglass hull (solid or cored), you must drill a 73 mm (2 7/8 inches) hole using a hole saw.

The choice of mounting location is critical for the depth sounder's performance. Here are the main considerations:

The depth sounder must be mounted in an area where the water is clean and non-turbulent, away from turbulence generated by propellers, keels, strakes, fittings, water intakes or discharges.Avoid areas where the depth sounder could be damaged during launching, hauling or storage.On outboard or sterndrive motorboats, mount the depth sounder forward and near the motor(s).On inboard motorboats, mount the depth sounder forward and away from the propeller and propeller shaft.The depth sounder's axis must be parallel to the bow-stern axis of your vessel.

Yes, it is imperative to update the software of your Garmin chartplotter display when you install the GT12M-THF transducer. This update ensures optimal compatibility and the best performance of your sonar system.

The Garmin GT12M-THF depth sounder is made of brass. This material makes it ideal for installation on fiberglass, wood, or composite hulls.

It is generally not recommended to cut or splice the depth sounder cable unless you are connecting it to a "black box" fishfinder that requires bare-wire connections.

Cutting the depth sounder cable outside of this specific case may void your warranty. It is important to route the cable carefully, avoiding sharp bends or excessive pulling to prevent damage.

The Garmin GT12M-THF transducer is made of brass.

The GT12M-THF transducer is designed to be installed in fiberglass, wood, or composite hulls.

No, it is imperative not to install the GT12M-THF transducer on an aluminum or steel hull. Installing this brass model on a metal hull would create galvanic corrosion, which could lead to water ingress around the transducer.

The GT12M-THF depth sounder is a 20-degree model, ideal for hulls with a deadrise angle of 17 to 24 degrees. For optimal performance, it is essential that the depth sounder's angle matches as closely as possible the deadrise angle at the installation point.

Before drilling holes in the hull, you must check the deadrise angle at the installation location. You can measure it using a smartphone app, an angle finder, a protractor, or a digital level. You can also ask your boat manufacturer for the deadrise angle at a specific point on your hull.

Yes, to achieve the best possible performance and avoid potential damage to the device or your boat, installation by a qualified marine installer is recommended.

The required tools include:

A drillA 3 mm (1/8 in) drill bitA wrench suitable for nuts up to 75 mmMarine sealant (flexible, fast-curing type for below the waterline)Mild household detergent or rubbing alcoholSandpaperMasking tapeWaterproof electrical tapeCable glands (optional)Water-based antifouling paint (optional)For fiberglass hulls: a 73 mm (2 7/8 in) hole saw and marine-grade epoxy resin (for laminated fiberglass hulls).

To avoid interference and overheating risks, do not install the transducer near the engine or in the engine room. It should also not be installed behind frames, bulkheads, fittings, water intake or discharge openings, or anything that creates air bubbles or causes turbulent water. The transducer must be in clean (non-turbulent) water for optimal performance.

The choice of location is crucial for performance. Here are some guidelines:

Outboard and sterndrive boats: The depth sounder should be mounted ahead of and close to the engine(s).Inboard boats: The depth sounder should be mounted ahead of and away from the propeller and propeller shaft.Boats with stepped hulls: The depth sounder should be mounted ahead of the first step.Long-keel boats: The depth sounder should be mounted slightly angled toward the bow, parallel to the centerline.Fin-keel boats: The depth sounder should be mounted 25 to 75 cm (10 to 30 in) ahead of the keel and no more than 10 cm (4 in) to the side of the centerline.Displacement-hull boats: The depth sounder should be mounted about one-third of the waterline length from the bow, and 150 to 300 mm (6 to 12 in) to the side of the centerline.The depth sounder must be mounted parallel to the boat's fore-aft axis.

For a laminated fiberglass hull:

Drill a 3 mm (1/8 in) pilot hole from the outside.Place masking tape around the hole on the outside to reduce gelcoat cracking.Use a 73 mm (2 7/8 in) hole saw to cut the transducer hole through the hull from the outside.From the inside, use a slightly larger hole saw to cut only the inner fiberglass skin and core, ensuring the outer skin is not cut.Seal the exposed core inside the hull with fiberglass or epoxy casting resin to prevent water intrusion.

For a solid fiberglass hull:

Drill a 3 mm (1/8 in) pilot hole from the outside.Place masking tape around the pilot hole and the surrounding area on the outside of the hull to reduce gelcoat cracks.Use a 73 mm (2 7/8 in) hole saw to cut the depth sounder hole through the hull from the outside.Sand and clean the inside of the hole and the area around it.

During installation, apply marine sealant along the water path to ensure a watertight seal between the transducer and the hull. Apply a 2 mm (1/16 in) layer of marine sealant to the inner flange of the transducer housing where it contacts the hull. Also apply a layer of marine sealant along the threads of the transducer housing to fill the gap between the threads and the hull. The sealant on the threads should extend approximately 6 mm (1/4 in) above the inside of the hull to seal and secure the hull nut.

Yes, you must update the software of your Garmin chartplotter when installing this device to ensure compatibility and optimal performance.

Unless you are connecting the transducer to a black box sonar unit that requires bare-wire connections, you must not cut or splice the depth sounder cable. Cutting the depth sounder cable otherwise than as required to connect to a black box sonar unit may void your warranty.
