LUX SL180, tira LED, CRGBW, 400 mm

The Garmin LUX SL180 LED strip offers a full RGB color spectrum. It also features tunable white, ranging from warm white (2700 K) to cool white (6500 K).

This Garmin LUX SL180 LED strip model has a fixed length of 400 mm.

Yes, the LUX SL180 LED strip is factory-sealed to ensure IP68 compliance. This means it is protected against dust and temporary immersion. However, it is not designed for permanent submersion in water.

The LUX SL180 LED strip has a nominal power of 5 watts per meter. For a 400 mm strip, the power consumption is 2 watts.

The maximum power consumption of the LED strip is 0.6 A at 12 V and 0.36 A at 24 V when connected via the Lumishore LUX Strip Light driver module.

Yes, the LED strip is made from UV-resistant material. However, it must not be installed in areas with direct and prolonged sun exposure.

The LUX SL180 LED strip is designed for versatile installation, both inside and outside the vessel. It can be installed in damp areas, but not in permanent submersion. It is recommended to avoid areas of direct and prolonged sun exposure.

During installation, do not let the strip fall or twist. Carefully unroll it from the reel. Do not apply pressure on the LED area; press only on the edge of the strip. Do not pull, stretch, twist, or bend the strip along the horizontal axis. For lengths over one meter, it is recommended to use two people.

Installation can be done in several ways. For a standard installation, use the integrated 3M adhesive tape after cleaning the surface. For outdoor installations, wet areas, or tight bends, it is recommended to use mechanical fasteners (mounting clips) in addition to the adhesive. Clips should be spaced 25 to 30 cm apart or on each side of a bend.

Yes, the LED strip has a minimum bending radius of 50 mm, but only on the vertical axis. It is strictly forbidden to twist or bend it on the horizontal axis.

Yes, it is essential to always ensure that the boat's power source and battery are disconnected or isolated before proceeding with the installation.

A qualified professional should carry out the electrical and mechanical installation of the light strip.

To use the 3M adhesive tape, clean the mounting surface thoroughly with IPA to ensure it is free of dust and dirt. Remove the protective layer from the 3M adhesive and firmly press the light strip into place, applying pressure only to the edges and not on the LEDs. Allow the adhesive to set for 24 hours before turning on the light strip.

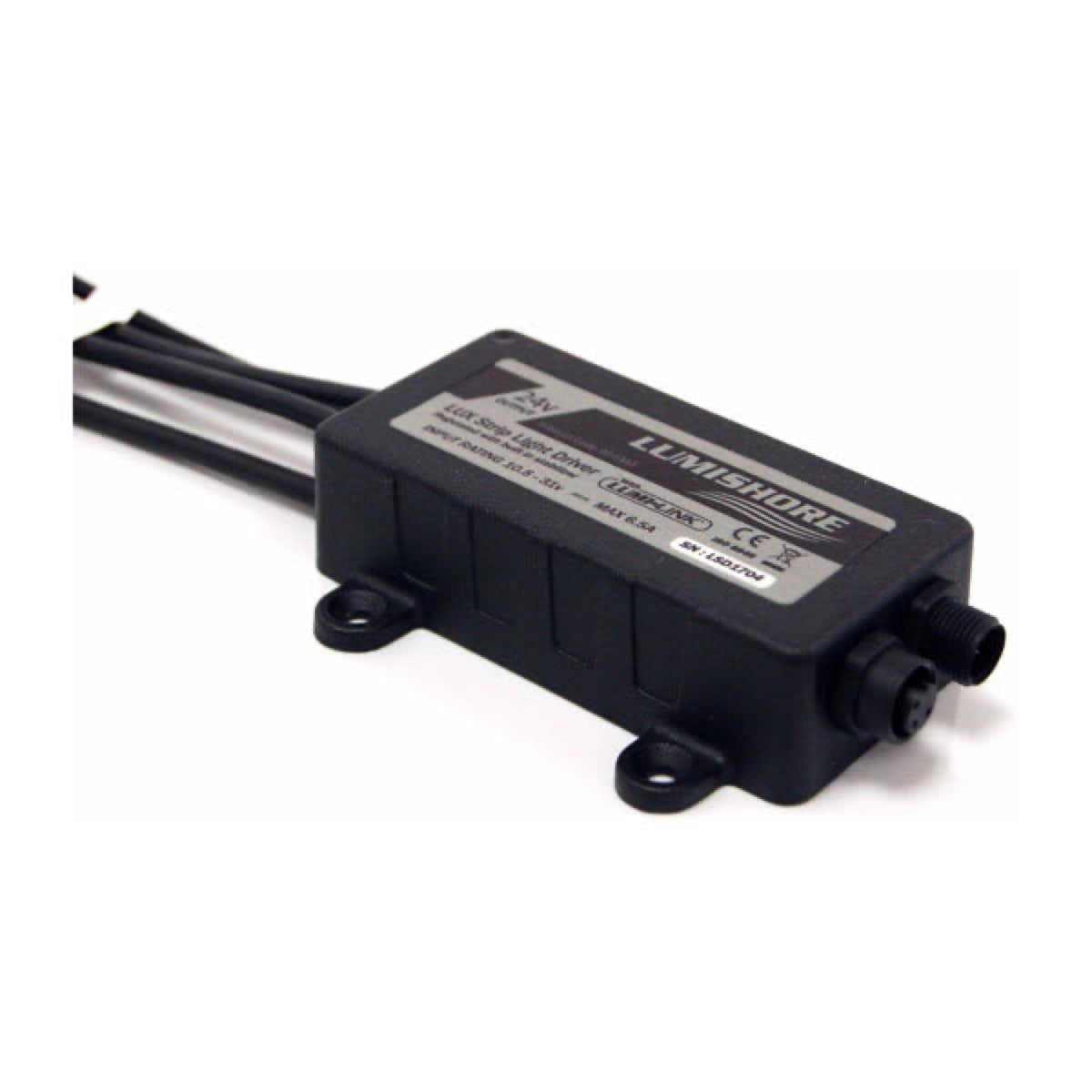

The LUX SL180 LED strip must be connected exclusively to a Lumishore LUX Strip Light driver module. It must not be connected to other lighting control products or third-party drivers.

The Lumishore LUX Strip Light driver module, required for the strip light to function, supports an input voltage of 10.5 to 31 VDC. The driver then supplies the required 23-25V output to the strip light.

The warranty may be voided in case of misuse, abuse, incorrect installation, negligence, improper shipping, damage caused by disasters (e.g., fire, flood, storm, and lightning), installation by unqualified personnel, unauthorized repair or modification, or unapproved installations. Failure to follow installation, maintenance, and usage guidelines also voids the warranty.

Yes, the LUX Strip Light LED strip is designed to work ONLY with the Lumishore LUX Strip Light driver module. Using third-party drivers will void the warranty.

No, although the LUX SL180 LED light bar is IP68 rated and resistant to temporary immersion, it is not designed for permanent submersion in water. It is intended for marine ambient lighting.

Le système CRGBW (Couleur RGB + Blanc Froid + Blanc Chaud) permet non seulement un large éventail de couleurs vives, mais aussi la possibilité d'ajuster la température de couleur du blanc de 2700 K (blanc chaud) à 6500 K (blanc froid). Cela offre une flexibilité maximale pour créer l'ambiance lumineuse souhaitée à bord.
