Mastervolt

43321000

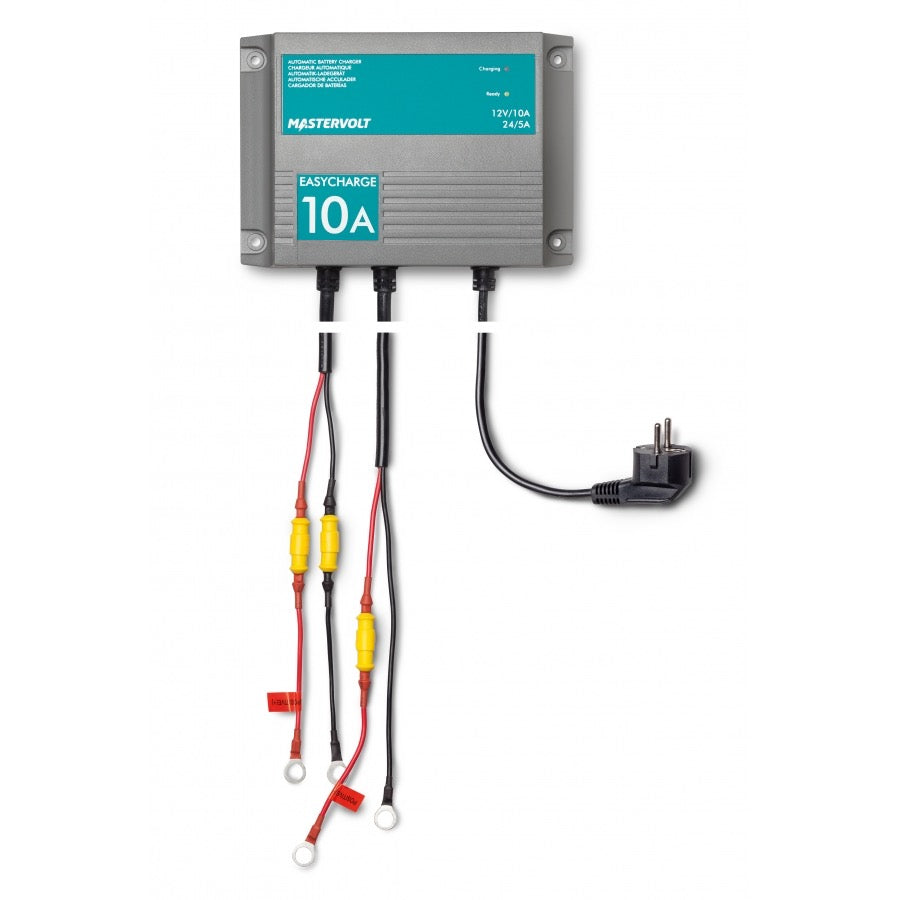

Carregador EasyCharge 10 A

The Mastervolt EasyCharge 10A is an IP68 marine battery charger with dual output, capable of fast-charging 12V and 24V systems at 10A (12V) or 5A (24V). It uses Sense-Send technology to optimize charge distribution and a 5-stage charging cycle to extend the lifespan of lead-acid batteries (flooded, gel, AGM, spiral) from 35 to 120 Ah. This model is the most powerful in the EasyCharge range, offering more versatility than the 6A version, and comes with its integrated Europlug (CEE 7/7) power cable.

Public priceGet pro pricing

139,56€

139,56€ ~~177,24€~~

IVA inclòs Expedició calculada en el moment del pagament.

En estoc

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Service d'assistance

Choose additional assistance for installation

Technical specifications

Grau de protecció IP	IP68
Entrada amb fil	Power cable with Europlug (CEE 7/7)
Secció de cable AC recomanada	0.75 mm²
Rang de tensió d'entrada AC	90-265 V
Dimensions (L x A x P)	140 x 198 x 63 mm
Químiques de bateria compatibles	Lead (Wet, Gel, AGM, Spiral)
Tensió de càrrega d'absorció	14.3
Algorisme de càrrega	Multi-step (Regeneration, Bulk, Absorption, Float, Maintenance)
Fases de càrrega	Regeneration, Bulk, Absorption, Float, Maintenance
Mètode de refrigeració	Natural convection
Eficiència màxima	90.0
Tensió de manteniment (Float)	13.3
Corrent d'entrada AC màxim	2.5
Corrent de càrrega màxim (A)	10.0
Secció mínima del cable DC	4.0
Tipus de muntatge	Vertical wall mounting
Tensió nominal	12.0
Interval de temperatura de funcionament	-20°C to 50°C
Tensió de sortida	12.0
Factor de potència (Cos Phi)	0.95
Calibre de fusible recomanat	10.0
Rang de freqüència d'entrada AC	50/60
Distribució automàtica del corrent	Yes
Procediment de desconnexió de la bateria	Disconnect AC, then DC (negative then positive)
Mida del grup BCI	Group 24 to 31
Llindar de tensió d'inici Bulk	14.3
Espai lliure necessari al voltant de l'aparell	20
Potència contínua a 25°C	120.0
Potència de sortida contínua (40°C)	120.0
Calibre del fusible CC	10
Llindar de temperatura per desclassament	40
Conformitat de la instal·lació elèctrica	Local regulations and applicable standards
Reemplaçable per l'usuari	No
Aïllament galvànic	Oui
Rang de tensió d'entrada	90-265 V
Tipus d'ona de l'inversor	N/A (DC charger)
Termini d'activació de la càrrega de manteniment	14
Tensió d'activació de la càrrega de manteniment	12
Dissenyat per a entorn marí	Oui
Corrent de càrrega màxim (detall)	10 A at 12V / 5 A at 24V
Material de la cargoleria	Stainless steel
Mida de les fixacions (mètrica)	4.8mm or M5
Orientació de muntatge	Vertical (downward-facing connectors)
Tecnologia de càrrega de múltiples bateries	Sense-Send
Tensió nominal de bateria suportada	12V / 24V
Tensió d'entrada nominal	230.0
Tensió de sortida nominal	12.0
Freqüència de sortida	N/A (DC)
Protecció contra sobrecàrregues	Oui
Potència de pic	120.0
Pes del producte	2.5
Classe de protecció	Class I
Funcions de protecció	Sparks, Short circuits, Polarity reversal, Overvoltage, Current limiting, Excessive temperature
Rang de capacitat de bateria recomanada	35 – 120
Tensió d'inici de la regeneració	10
Protecció contra curtcircuits	Oui
Ventilació requerida	Yes
Pes	2.5
Sortida amb fil	2 DC outputs (battery terminals)

Detailed description

El carregador de bateries Mastervolt EasyCharge 10A (referència 43321000) és una solució de càrrega robusta i eficient, dissenyada per a entorns marins exigents. Pertanyent a la sèrie EasyCharge de Mastervolt, es posiciona com una opció superior al model EasyCharge 6A-1 en oferir una capacitat de càrrega augmentada i una polivalència estesa. Aquest carregador està específicament elaborat per a una connexió permanent als sistemes AC i DC de les instal·lacions nàutiques.

Rendiment de càrrega i gestió intel·ligent

L'EasyCharge 10A lliura un corrent de càrrega màxim de 10 A per a sistemes de 12V i de 5 A per a sistemes de 24V, cosa que el fa compatible amb bateries d’una capacitat que va dels 35 als 120 Ah. A diferència del model de 6A, que només gestiona el 12V, l’EasyCharge 10A-2 admet les dues tensions nominals. Incorpora dues sortides de càrrega independents, gestionades mitjançant la tecnologia Sense-Send. Aquesta funcionalitat permet al carregador analitzar dinàmicament les necessitats de cada bateria connectada i distribuir la potència de manera òptima, assegurant temps de càrrega reduïts, especialment quan les bateries presenten nivells de descàrrega diferents. El cicle de càrrega es realitza en 5 etapes: regeneració, bulk, absorció, flotació i manteniment, garantint una càrrega completa i una llarga vida útil de les bateries de plom (humides, gel, AGM, espiral).

Disseny robust i seguretat avançada

Dissenyat per resistir les condicions marines, el Mastervolt EasyCharge 10A compta amb un índex de protecció IP68, cosa que el fa totalment estanc a la pols i submergible. El seu xassís robust permet funcionar en un rang de temperatura ambient de –20°C a 50°C. Les dimensions compactes (140 x 198 x 63 mm) i un pes de 2,5 kg en faciliten la integració a bord. La seguretat és una prioritat amb proteccions integrades contra les espurnes, els curtcircuits, la inversió de polaritat, la sobretensió, el corrent limitat i la temperatura excessiva. Aquest carregador compleix les normes de la California Energy Commission (CEC) i les directives europees 2014/35/EU (LVD), 2014/30/EU (EMC) i 2011/65/EU (RoHS), cosa que n’atesta la fiabilitat i la conformitat reglamentària.

Documentation

Type	Nom
	FR - Manuel utilisateur - Chargeur EasyCharge 10A
	EN - Déclaration UE de conformité - Chargeur EasyCharge 10A
	FR - Manuel utilisateur - Chargeur EasyCharge 10A
	EN - Manuel d'utilisation et d'installation - Chargeur EasyCharge 10A

Expert review

Pol CONIN

Responsable digital

« Technical analysis of the Mastervolt EasyCharge 10A for marine use »

The Mastervolt EasyCharge 10A (ref. 43321000) is a reliable and highly integrable charging solution for 12V and 24V marine electrical systems. Its IP68 protection rating ensures total resistance to water and dust, essential for installation in engine compartments or areas exposed to moisture. The Sense-Send technology, with its two independent outputs, optimizes charge current distribution, ensuring fast and balanced recovery even for heterogeneous battery banks or those with varying states of charge. This charger is particularly suited to boat owners requiring efficient management of two batteries (e.g., start and service batteries) without compromising durability or safety. The 5-stage charging cycle (reconditioning, bulk, absorption, float, maintenance) extends the lifespan of lead-acid, gel, AGM, and spiral batteries by maintaining them at optimal performance levels. Installation is straightforward thanks to clear instructions, though permanent connection to AC and DC power requires compliance with current electrical standards.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Carregador EasyCharge 10 A

139,56€

139,56€ ~~177,24€~~

Complete your installation with

Complementary equipment

Mastervolt

Bateria AGM 12 V 90 Ah

Ref : 62000900

238,91€

238,91€ ~~305,40€~~

Contrôleur de batterie MasterShunt 500 CZone

Mastervolt

Controlador de bateria MasterShunt 500 CZone

Ref : 77020115

329,39€

329,39€ ~~366,36€~~

Mastervolt

BattMan Pro. Controlador de bateries

Ref : 70405070

198,90€

198,90€ ~~235,92€~~

Mastervolt

Regulador de càrrega solar MPPT SCM25

Ref : 131902500

240,68€

240,68€ ~~282,00€~~

Mastervolt

Convertidor AC Master 24/1000 (230V)

Ref : 28021000

534,86€

534,86€ ~~624,00€~~

Mastervolt

Bateria MVG gel 12 V 55 Ah

Ref : 64000550

272,00€

272,00€ ~~318,24€~~

Mastervolt

Bateria AGM 12 V 55 Ah

Ref : 62000550

164,52€

164,52€ ~~204,00€~~

Répartiteur de charge 1603 IG 12/24V Battery Mate

Mastervolt

Distribuïdor de càrrega Battery Mate 1603 IG 12/24 V

Ref : 83116035

217,27€

217,27€ ~~268,32€~~

Charge Mate 2502 - Relais auto. de batterie

Mastervolt

Charge Mate 2502 - Relé automàtic de bateria

Ref : 83302502

215,34€

215,34€ ~~273,84€~~

Frequently Asked Questions

Need help? Contact us

What is the Mastervolt EasyCharge 10A charger?

The Mastervolt EasyCharge 10A (reference 43321000) is a robust and high-performance battery charger designed specifically for marine environments. It is intended for permanent connection to the AC and DC electrical systems of your boat installation. This model provides a charging capacity of 10 A for 12 V systems and 5 A for 24 V systems, and includes two independent charging outputs.

What is the particularity of its design for the marine environment?

The Mastervolt EasyCharge 10A charger is designed to withstand demanding marine conditions. It features an IP68 protection rating, making it fully dust-tight and submersible. Its robust housing allows it to operate within an ambient temperature range of –20°C to 50°C.

What protections does the Mastervolt EasyCharge 10A charger include?

The Mastervolt EasyCharge 10A charger is equipped with multiple protections to ensure the safety of your installation and batteries. It protects against:

SparkingShort circuitsPolarity reversalOvervoltageCurrent limitingExcessive temperature

How does the 5-step charging cycle work?

The EasyCharge 10A charger uses a 5-step smart charging cycle to optimize battery lifespan:

Regeneration: The charger checks connections and applies a low current in case of deep discharge to bring the battery back to a normal voltage level.Bulk: The charger delivers its maximum current to charge the battery quickly (0 to 75%).Absorption: The maximum charging voltage is reached and the current gradually decreases until the battery is fully charged (100%).Float: The battery is fully charged and the charger stabilizes the voltage at 13.3 V before shutting down.Maintenance: The charger monitors the battery and restarts a full cycle if the voltage drops below 12 V or after 14 days without charging.

What is the function of the Sense-Send technology?

The Sense-Send technology allows the Mastervolt EasyCharge 10A charger, which has two charging outputs, to dynamically analyze the needs of each connected battery. It distributes power optimally, allocating more current to the battery that requires it the most. This ensures reduced charging times, especially when batteries have different discharge levels.

What is the operating temperature range of the charger?

The Mastervolt EasyCharge 10A charger is designed to operate within an ambient temperature range of –20°C to 50°C. Power reduction may occur from 40°C to limit internal temperature and protect the device.

What nominal battery voltages does the charger support?

The Mastervolt EasyCharge 10A charger can charge batteries with a nominal voltage of 12V or 24V.

Can non-rechargeable or damaged batteries be charged with this charger?

No, it is strictly forbidden to attempt to recharge non-rechargeable batteries. For safety reasons and to prevent damage, you must never charge a frozen or damaged battery.

Where should I install the Mastervolt EasyCharge 10A charger?

For optimal and safe installation, the charger must be mounted on a solid vertical surface that is heat-resistant, with the connectors facing downward. It is crucial to ensure that the hot air generated during operation can dissipate, leaving a clearance of at least 20 cm free of obstacles around the charger. Additionally, place the charger as far from the battery as the DC cables allow and avoid installing it directly above batteries to prevent corrosion from sulfur emissions.

Should consumers be disconnected from the battery before installing the charger?

Yes, before proceeding with the charger installation and cable connections, it is recommended to disconnect all consumers from the battery. This helps prevent electrical arcing risks and ensures a safe installation.

Can I cut the charger's connection cables?

No, you must not cut the charger's connection cables. The cables are sized to ensure safe and efficient operation. Any modification could compromise the device's safety and performance.

What is the warranty period for the Mastervolt EasyCharge 10A charger?

Mastervolt guarantees the proper operation of this device for a period of two (2) years. This warranty is valid provided that the charger is installed and used strictly in accordance with the instructions provided in the user manual.

What does the Mastervolt EasyCharge 10A charger warranty cover?

The warranty for the Mastervolt EasyCharge 10A charger is limited to the cost of parts for replacement or repair of the device. It is important to note that labor and shipping costs are not covered by this warranty.

How to interpret the LED indicators on the charger?

The Mastervolt EasyCharge 10A charger’s LED indicators show the charging status:

RED LED on (GREEN LED off): Battery is charging (REGENERATION or BULK stage).RED LED on (GREEN LED on): Charger is in ABSORPTION stage.RED LED off (GREEN LED on): Battery is fully charged (FLOAT stage).RED LED on (GREEN LED on) in FLOAT: Battery is fully charged, but a load is drawing current.No LED lit: Charger is in MAINTENANCE mode (powered down to save energy), or there is no AC power, or an internal fault has occurred.
