Skysat

3G4

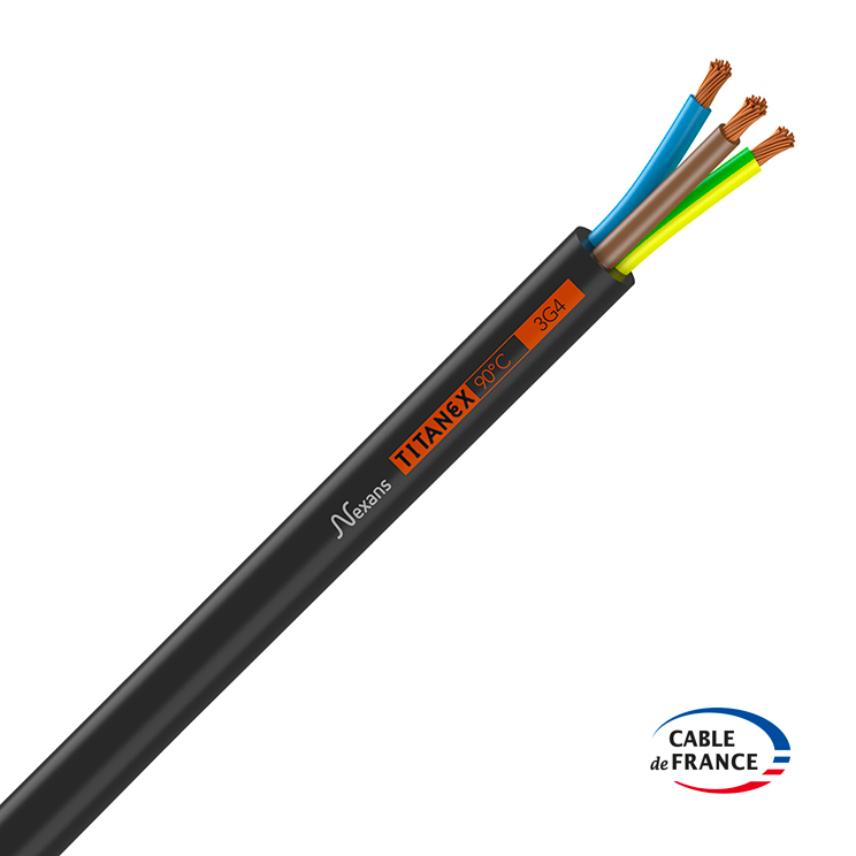

Cable HO7RN-F 3G4 TITANEX

The Nexans HO7RN-F TITANEX 3G4 cable is a flexible bare copper cable with 3 conductors (4 mm² each), featuring elastomer insulation and sheathing. Designed for heavy-duty use, it resists impacts (AG3), UV rays, and oils, supports 450/750 V and 49 A, and is ideal for marine and industrial environments. Sold by the linear meter, it is supplied without additional accessories.

Public priceGet pro pricing

11,28€

11,28€ ~~12,53€~~

11,28€ m

IVA inclòs Expedició calculada en el moment del pagament.

Disponible en estoc

LONGUEUR :

M cm

1M 7,5M 10M 15M 20M 35M 50M

Longueur facturée : 1 m (arrondie au mètre supérieur)

Prix publicBénéficier du tarif pro

~~12,53€~~ TTC -10%

11,28€ TTC

soit 11,28€ / m (après remise)

Vous économisez : 1,25€

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Service d'assistance

Choose additional assistance for installation

Technical specifications

Tipus de cable	Power cable
Secció (mm²)	4
Nombre de conductors	3
Color	Noir
Tensió màxima	1000
Blindatge	Unshielded
Flexibilitat	High-flex
Tipus de corrent	AC\|DC
Diàmetre exterior del cable	16.2
Material de la funda	Rubber/elastomer
Material del conductor	Copper
Certificacions	H07RN-F
Acabat conductor	Unfinished
Aplicació del cable	Alimentation électrique marine
Construcció del conductor	Multibrins souple
Diàmetre exterior	16.2
Corrent nominal	49
Tipus de producte	Câble électrique

Detailed description

El cable Nexans H07RN-F TITANEX 3G4 és una solució de cablejat robusta i flexible, dissenyada per a entorns exigents. Aquest cable de coure nu de classe 5, amb una secció de 4 mm² per conductor, ofereix una connectivitat fiable per a aplicacions fixes o mòbils. Incorpora tres conductors, un dels quals és verd/groc per a la terra, i compta amb una aïllament i una funda d'elastòmer reticulat de color negre.

Prestacions i conformitat

Conforme a les normes EN 50525-2-21, HD 516 i IEC 60245-4 tipus 66, el TITANEX 3G4 suporta una tensió nominal de 450/750 V en ús mòbil i 0,6/1 kV en ús fix. La seva capacitat de corrent admissible a l'aire lliure és de 49 A, amb una caiguda de tensió monofàsica de 10,1 V/A.km. Aquest cable destaca per la seva resistència mecànica als xocs (AG3), flexibilitat i bona resistència als productes químics, als olis i a les vibracions. La temperatura màxima del conductor en servei és de 90 °C.

Aplicacions i durabilitat

El cable TITANEX H07RN-F és adequat per a instal·lacions interiors i exteriors, fins i tot en entorns humits o amb presència d'olis. La seva resistència als UV permet una instal·lació sense protecció addicional a l'exterior. Presenta un radi de corbatura mínim dinàmic de 6 a 8 vegades el seu diàmetre exterior (97,2 mm per a un diàmetre màxim de 16,2 mm) i estàtic de 4 vegades (per a un diàmetre màxim de 16,2 mm, és a dir, 64,8 mm). La seva reacció al foc està classificada com a Eca (segons EN 50575:2014+A1:2016) i és ignífug (IEC 60332-1, C2), limitant la propagació del foc i del fum. A diferència dels cables estàndards HO5VV-F, el TITANEX està dissenyat específicament per resistir a unes condicions mecàniques i ambientals més severes, posicionant-lo per a usos industrials, portuaris o d'esdeveniments on la robustesa és primordial. També és sense plom i conforme amb la directiva RoHS 2011/65/EU.

Documentation

Type	Nom
	Nexans TITANEX H07RN-F product sheet

Expert review

Pol CONIN

Responsable digital

« Technical analysis: Nexans TITANEX 3G4 cable for demanding environments »

The Nexans HO7RN-F TITANEX 3G4 cable is a benchmark for marine or industrial electrical applications subjected to high stress. Its design with cross-linked elastomer insulation and sheath provides constant flexibility and increased resistance to mechanical and chemical damage, where traditional PVC cables would quickly show their limitations. For onboard installations, particularly powering pumps, winches, or deck-mounted mobile equipment, its ability to withstand repeated flexing (dynamic bend radius of 6 to 8 times the diameter) and its AG3 impact resistance rating are major advantages. It stands out with its UV resistance, allowing outdoor installation without additional protective sheathing, thus simplifying installations and reducing ancillary costs.

Its Eca classification and C2 flame-retardant compliance are also significant safety guarantees for confined or high-risk environments. Although it can be submerged with additional mechanical protection, its primary use remains connecting equipment requiring robustness and durability superior to standard cables, preventing premature failures due to abrasion or weathering. It is the relevant choice for a "fit and forget" installation in conditions where maintenance is complex or costly.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Cable HO7RN-F 3G4 TITANEX

11,28€

11,28€ ~~12,53€~~

11,28€ m

Complete your installation with

Complementary equipment

BEP Marine

Shunt d'amperímetre 450 A 50 mV

Ref : LB-450-50

92,92€

92,92€ ~~125,16€~~

B&G Traceur de cartes Zeus 3S 12" avec carte de base du monde

B&G Traceur de cartes Zeus 3S 12" avec carte de base du monde - photo 2

B&G

Rastreador cartogràfic Zeus 3S 12" amb carta base mundial

Ref : 000-15412-002

3.981,96€

3.981,96€ ~~4.772,38€~~

B&G Pack Radio VHF, système V100-B, AIS+GPS 500

B&G Pack Radio VHF, système V100-B, AIS+GPS 500 - photo 2

B&G

Pack Ràdio VHF, sistema V100-B, AIS+GPS 500

Ref : 000-15793-001

1.416,60€

1.416,60€ ~~1.983,24€~~

Frequently Asked Questions

Need help? Contact us

What is the HO7RN-F 3G4 TITANEX cable and what applications is it intended for?

The Nexans HO7RN-F TITANEX 3G4 cable is a flexible and robust rubber cable designed for demanding environments. It consists of three bare copper conductors of class 5, each with a 4 mm² cross-section, including a green/yellow earth conductor.

It is ideal for a wide range of applications, including:

Industrial environments: factories, construction sites, harbors.Fixed or mobile installations: powering cranes, machine tools.Events: festivals, concerts, sporting events, where the cable is exposed and reused.Harsh conditions: resistant to mechanical shocks (AG3), extreme temperatures, oils, chemicals, and vibrations.It can be used indoors or outdoors, including in damp environments, and its UV resistance allows for installation without additional protection outdoors.

What are the main electrical characteristics of this cable?

The HO7RN-F 3G4 TITANEX cable has the following electrical characteristics:

Rated voltage Uo/U: 450/750 V for mobile use and 0.6/1 kV for fixed installation.

Ampacity: 49 A in open air.

Voltage drop: 10.1 V/A.km in single-phase.

Maximum conductor temperature in service: 90 °C.

Maximum conductor temperature in short-circuit: 250 °C.

Can the TITANEX 3G4 cable be used outdoors or in wet environments?

Yes, the TITANEX H07RN-F 3G4 cable is specifically designed for use in demanding environments. It can be installed indoors and outdoors, including in wet environments or in the presence of oils. Its UV resistance allows it to be installed outdoors without additional protection. It can also be submerged, provided additional mechanical protection is added.

What are the minimum bend radius requirements for installing the TITANEX 3G4 cable?

For correct installation of the TITANEX 3G4 cable, the following minimum bend radii must be observed:

For dynamic use: the minimum bend radius is 6 to 8 times the outer diameter of the cable. With a maximum outer diameter of 16.2 mm, this corresponds to a radius of 97.2 mm (6 x 16.2 mm). For static use: the minimum bend radius is 4 times the outer diameter of the cable, as its diameter exceeds 12 mm. This corresponds to a radius of 64.8 mm (4 x 16.2 mm).

Is the HO7RN-F 3G4 TITANEX cable fire-resistant and chemical-resistant?

Yes, the HO7RN-F 3G4 TITANEX cable is designed to offer excellent resistance to environmental stresses:

Fire resistance: It is flame-retardant (per IEC 60332-1, C2) and its fire reaction is classified as Eca (per EN 50575:2014+A1:2016), which limits the spread of fire and smoke.Chemical and oil resistance: It has good resistance to chemicals and oils, making it suitable for industrial environments where such substances may be present.Vibration resistance: It is also designed to withstand vibrations well.

What is the composition and identification of the conductors in the TITANEX 3G4 cable?

The TITANEX 3G4 cable is composed of:

Conductor material: Bare copper.Conductor flexibility: Class 5, providing very high flexibility.Number of conductors: 3.Conductor cross-section: 4 mm² each.Conductor identification: In accordance with European harmonization HD308 S2, a 3G cable (with ground) is identified by the colors brown, blue, and green/yellow (for the ground).The insulation and outer sheath are made of cross-linked elastomer in black color.
