Element 12 HV - Pantalla GPS de 12", Wi-Fi, sonar CHIRP i HYPERVISION, sonda HV-100+, cartografia Lighthouse d'Europa Occidental

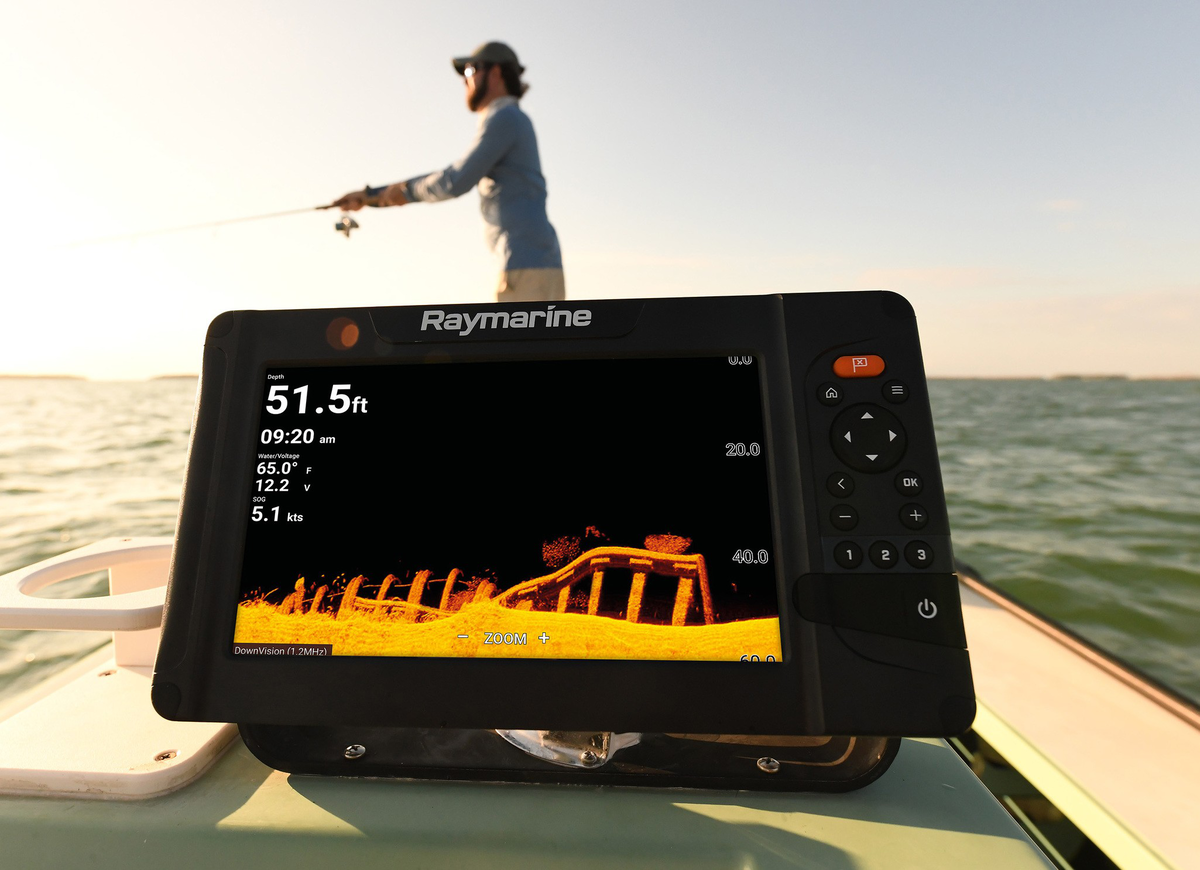

Conçu pour la navigation et la pêche, le Raymarine Element 12 HV est un traceur de cartes/sondeur de 12 pouces intégrant les technologies CHIRP et HYPERVISION à 1.2 MHz. Cette gamme se positionne comme une solution dédiée, offrant une interface utilisateur intuitive pour l'accès aux fonctions essentielles. Le pack inclut l'écran Element 12 HV, la sonde tableau arrière HV-100+ et la cartographie Lighthouse Europe de l'Ouest.

Mida: 12 polzades

7 polzades 9 polzades 12 polzades

Cartografia: Europa Occidental

Sense cartografia Mediterrània Europa del Nord Europa Occidental

Public priceGet pro pricing

1.532,06€

1.532,06€ ~~1.674,00€~~

IVA inclòs Expedició calculada en el moment del pagament.

En estoc

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Service d'assistance

Choose additional assistance for installation

Detailed description

El Raymarine Element 12 HV és un traçador de cartes i sonar dissenyat per a la navegació i la detecció de peixos. Amb una pantalla de 12 polzades, integra les tecnologies de sonar CHIRP i HYPERVISION, que ofereixen una visualització detallada del fons marí i les estructures submergides. Aquest sistema es lliura amb la sonda HV-100+ i la cartografia Lighthouse d'Europa Occidental.

Capacitats de Sonar i de Navegació

L'Element 12 HV ofereix una pantalla de 12 polzades, optimitzada per a una bona llegibilitat a l'exterior. Incorpora un receptor GPS per a les funcions de navegació i connectivitat Wi-Fi. El sonar CHIRP assegura una detecció precisa de les targets i una separació dels fons. La tecnologia HYPERVISION, que opera a 1,2 MHz, permet una representació detallada del fons i les estructures amb els modes DownVision, SideVision i RealVision 3D.

Posicionament dins la Gamma Raymarine

La sèrie Element de Raymarine es posiciona com una gamma de traçadors de cartes/sonars dedicats, que ofereix una interfície simplificada i un accés directe a les funcions de sonar. A diferència dels pantalles multifunció (MFD) Axiom, que proposen una plataforma més oberta i modular per a la integració de sistemes complexos (radar, càmeres IP, etc.), l'Element 12 HV està optimitzat per a la navegació i la detecció submarina. Aquest model es lliura en pack complet amb la sonda HV-100+ per a muntatge a la taula de popa i la cartografia Raymarine Lighthouse per a Europa Occidental, cosa que facilita una instal·lació i posada en funcionament ràpides.

Documentation

Type	Nom
	EN - Declaration de conformite - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe de l'Ouest
	EN - Declaration de conformite - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe de l'Ouest
	EN - Declaration de conformite - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe de l'Ouest
	EN - Gabarit de montage - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe de l'Ouest
	EN - Notice d'installation - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe de l'Ouest
	EN - Notice d'installation - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe de l'Ouest
	EN - Notice d'installation - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe de l'Ouest
	FR - Notice d'installation - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe de l'Ouest
	EN - Gabarit de montage - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe de l'Ouest
	EN - Gabarit de montage - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe de l'Ouest
	EN - Notice d'installation - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe de l'Ouest
	EN - Notice d'installation - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe de l'Ouest
	FR - Notice d'installation - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe de l'Ouest
	EN - Gabarit de montage - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe de l'Ouest
	EN - Gabarit de montage - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe de l'Ouest

Expert review

Pol CONIN

Responsable digital

« Technical analysis of the Raymarine Element 12 HV: an effective fishfinder/GPS »

The Raymarine Element 12 HV is a relevant solution for recreational boaters and anglers seeking a dedicated console for navigation and underwater analysis without the complexity of an extended multifunction system. Its 12-inch display, combined with CHIRP and HyperVision technologies at 1.2 MHz, delivers superior image clarity for identifying structures and fish schools, a significant advantage in sport fishing or exploring unknown areas. The inclusion of the HV-100+ transducer in the pack is a plus for quick installation on the transom, covering essential needs right out of the box.

This model is particularly suited to mid-sized boats where dashboard space is optimized. It stands out from MFDs like the Axiom with its simplified "all-in-one" approach, reducing the need for complex wiring and network configuration. For installation, it is crucial to ensure that the HV-100+ transducer location on the transom is free of turbulence to maximize HyperVision image performance. While effective for most coastal and lake applications, it is important to note that the Element 12 HV is not designed for full integration with advanced autopilot or radar systems, functions reserved for Raymarine's higher-end ranges. It excels in its primary role as a standalone chartplotter/depth sounder.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Element 12 HV - Pantalla GPS de 12", Wi-Fi, sonar CHIRP i HYPERVISION, sonda HV-100+, cartografia Lighthouse d'Europa Occidental

1.532,06€

1.532,06€ ~~1.674,00€~~

Complete your installation with

Complementary equipment

Raymarine

Display multifunció i70s

Ref : E70327

678,00€

678,00€ ~~714,00€~~

Raymarine

Display i60 vent

Ref : E70061

560,23€

560,23€ ~~594,00€~~

Raymarine

Mostrador digital i50 Tridata

Ref : E70060

567,25€

567,25€ ~~654,00€~~

Kit pilote auto EV-200 avec pompe hydraulique type 1

Raymarine

Kit pilot automàtic EV-200 amb bomba hidràulica tipus 1

Ref : T70157

3.245,58€

3.245,58€ ~~3.594,00€~~

Émetteur-récepteur VHF avec ASN Ray 90 (Inc combiné, HP Passif et câble)

Raymarine

Transmissor-receptor VHF amb ASN Ray 90 (incl. combinat, altaveu passiu i cable)

Ref : E70492

1.031,53€

1.031,53€ ~~1.074,00€~~

Frequently Asked Questions

Need help? Contact us

What is the screen size of the Raymarine Element 12 HV?

The Element 12 HV features a 12-inch display. The screen is optimized for excellent readability, even in bright outdoor conditions.

Which fishfinder technologies are integrated in the Raymarine Element 12 HV?

The Raymarine Element 12 HV integrates CHIRP and HYPERVISION fishfinder technologies. The HYPERVISION technology, operating at 1.2 MHz, provides highly detailed imaging of the seabed and submerged structures using DownVision, SideVision, and RealVision 3D modes.

Which mapping is provided with the Raymarine Element 12 HV?

The Raymarine Element 12 HV comes with Raymarine Lighthouse mapping for Western Europe, enabling quick setup for navigation in this region.

What is the main difference between Raymarine's Element series and Axiom series?

The Element series, which includes the Element 12 HV, is positioned as a range of dedicated chartplotters and fishfinders. It offers a simplified interface and direct access to fishfinder functions. In contrast, the Axiom multifunction displays (MFD) provide a more open and modular platform, designed for integrating complex systems such as radar or IP cameras.

Does the Raymarine Element 12 HV have built-in Wi-Fi connectivity?

Yes, the Raymarine Element 12 HV has integrated Wi-Fi connectivity, enabling additional features and improved interconnection.

What type of transducer is included with the Element 12 HV and how is it installed?

The Raymarine Element 12 HV comes as a complete package including the HV-100+ transducer. This transducer is specifically designed for installation on the transom of your vessel. Detailed installation instructions are provided in the product documentation.

Is a mounting template available for the Element 12 HV display?

Yes, a mounting template is available for the Element 12 HV display. It is critical to ensure this template is printed at full scale. To do this, follow Raymarine’s specific printing instructions, particularly when using Adobe Acrobat Reader’s recommended print settings.

Is the Raymarine Element 12 HV compatible with other transducers besides the HV-100+?

The Raymarine Element 12 HV is supplied as a complete pack with the HV-100+ transducer for transom mounting. The system is designed to work with Raymarine's HyperVision transducer range. While other HyperVision transducers, such as the through-hull HV-300 models, may be compatible with the Element display, they are not included and would require separate purchase as well as specific compatibility verification.
