Antena negra radar Quantum Q24D Doppler amb cable d'alimentació i dades de 15 m

The Raymarine Quantum Q24D Doppler radar antenna is a radome radar system from the Quantum 2 series, designed for advanced target detection at sea. It integrates Doppler technology for precise movement analysis and is black in color.

Doppler technology enables clearer identification of moving targets. This feature is crucial for improving situational awareness and preventing collisions at sea.

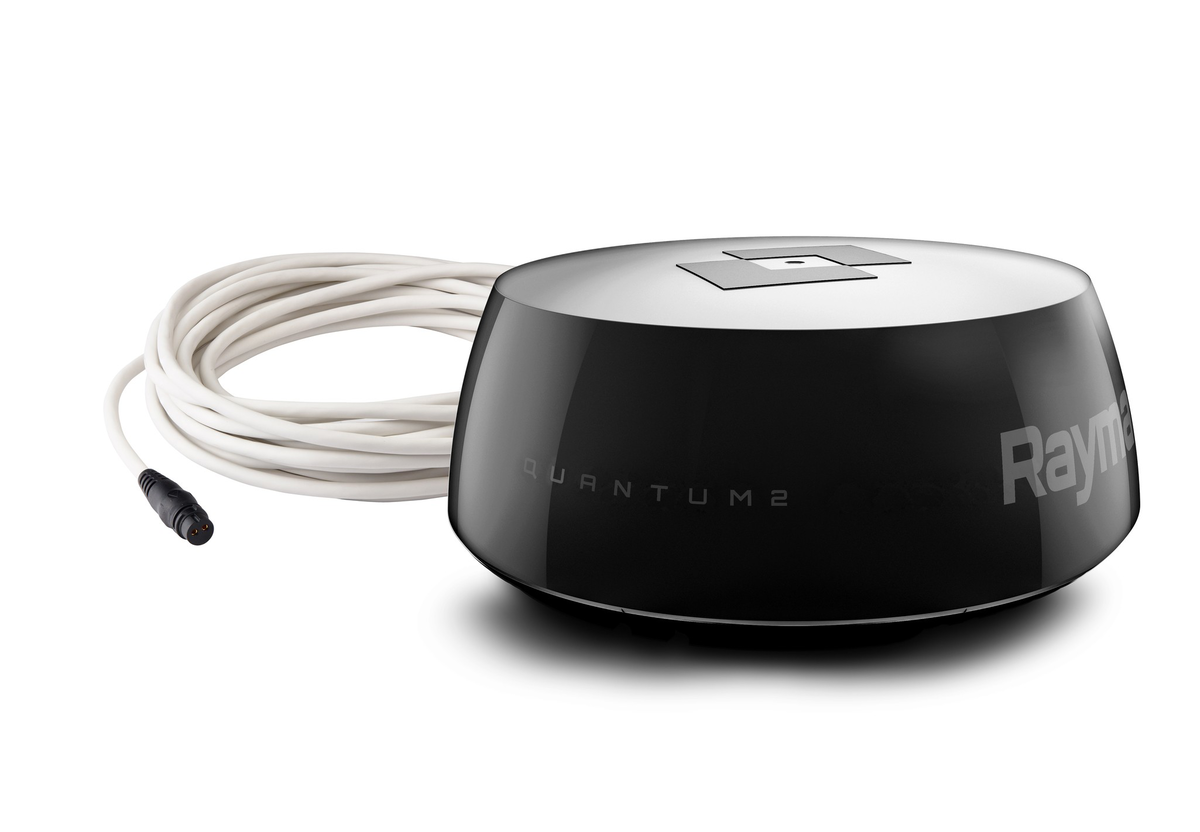

The Quantum Q24D Doppler radar antenna package includes the antenna itself, a 15-metre power cable, and a 15-metre data cable.

This radar antenna is compatible with Raymarine multifunction displays that support the Quantum 2 series. Software updates may be required to ensure compatibility and optimal performance.

The radar antenna provides flexible connectivity via RayNet (wired connection) or via Wi-Fi (wireless connection) to compatible Raymarine multifunction displays.

Full use of the radar’s capabilities, including Doppler technology, requires software updates on compatible Raymarine multifunction displays. Consult the product documentation for details.

Yes, installation requires accounting for antenna positioning to avoid blind zones and optimize Wi-Fi reception if this connection option is selected. Detailed mounting guidelines are provided in the documentation.

Yes, the product is compliant with the regulatory standards mentioned in its technical documentation, such as those from IEEE, ICNIRP, FCC, and MSIP (Korea only), as well as with European Directive 2014/53/EU.

Yes, an inline fuse is required for the radar power supply. The fuse and thermal circuit breaker ratings are specified in the installation documentation.

No, grounding is not required for the Quantum Q24D Doppler radar antenna.

Yes, it is possible to install multiple Quantum radar scanners. Specific location requirements apply for multi-radar installations, detailed in the documentation.

The radar is designed to operate on 12 V or 24 V electrical systems.

Detailed installation instructions, including mounting and wiring guidelines, are provided in the product documentation.

The heading alignment and lubber line alignment procedures are detailed in the system checks section of the installation documentation to ensure optimal accuracy.

It is important to keep the Wi-Fi password of your Quantum radar, as it will be required for wireless connections and certain post-installation procedures.

Yes, the radar can provide data for automatic target acquisition (MARPA), but this requires specific data sources whose requirements are detailed in the documentation.

Yes, the presence of ventilation holes (referred to as "breather holes" in technical documentation) is a prerequisite for installation. The installation instructions detail how to handle them correctly.

Specific instructions for cleaning the radar unit are provided in the "Maintenance" section of the product documentation.

It is crucial to ensure the mounting template is printed at actual size. The documentation recommends using Adobe Acrobat's print settings to guarantee the correct size.

You can register the warranty for your Raymarine product by following the instructions provided in the "Warranty policy and registration" section of the documentation or via Raymarine's official website.
