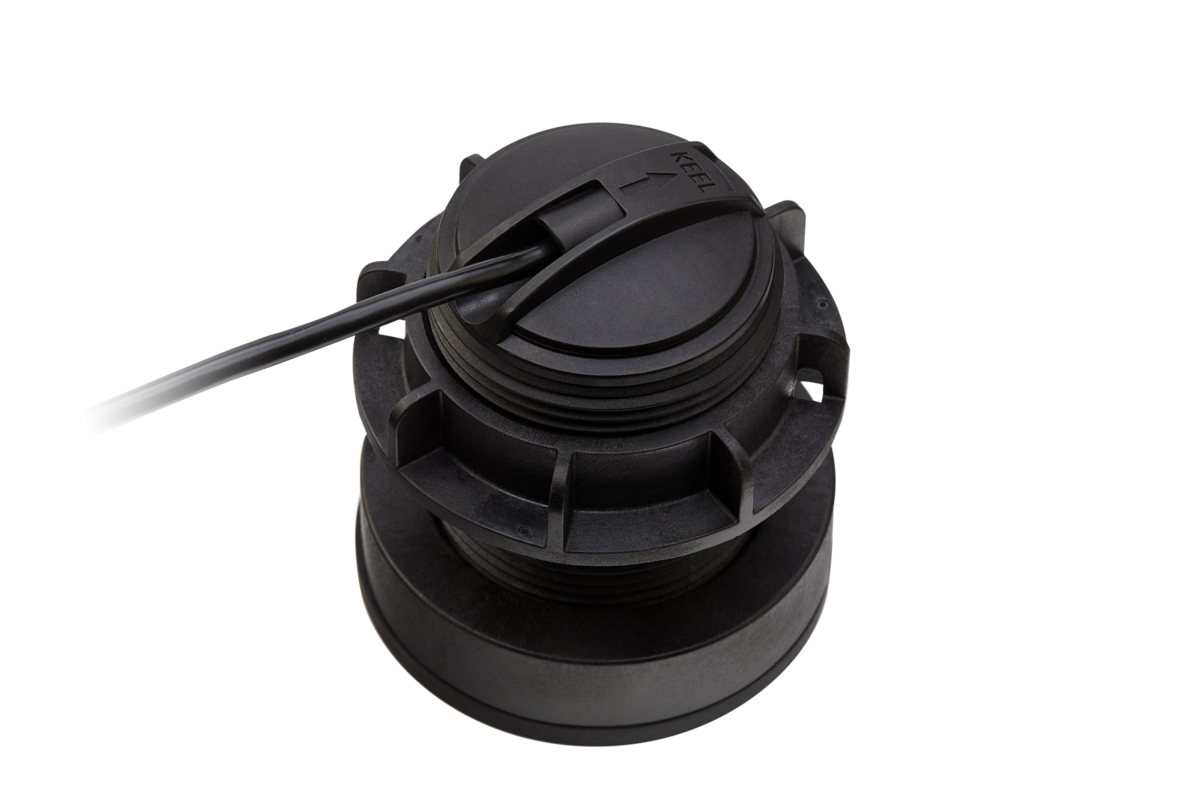

Sonde plastique traversante à faisceau conique HIGH CHIRP angle 12° CPT-S, 10m câble

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Service d'assistance

Choose additional assistance for installation

Estalvieu 6%

Raymarine

A80448

Sonda plàstica transversal amb feix cònic HIGH CHIRP angle 12° CPT-S, cable de 10 m

La sonde plastique traversante Raymarine CPT-S A80448 intègre la technologie HIGH CHIRP avec un faisceau conique de 20°, optimisée pour les coques en fibre de verre à V plus prononcé. Elle assure une détection sous-marine détaillée et une excellente séparation des cibles pour les systèmes Raymarine compatibles.

Inclus : un transducteur CPT-S plastique traversant avec son câble de 10 mètres. Cette sonde fait partie de la gamme CPT-S actuelle de Raymarine, reconnue pour ses performances CHIRP.

Angle: 12 graus

12 graus 20 graus

Public priceGet pro pricing

298,27€

298,27€ ~~318,00€~~

IVA inclòs Expedició calculada en el moment del pagament.

En estoc

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Service d'assistance

Choose additional assistance for installation

Technical specifications

Tecnologies de sondatge compatibles	CHIRP,DownVision
Freqüències del sonar	170-230
Temperatura de funcionament	-15 à 70
Potència de pic	4000.0
Profunditat màxima de lectura	270.0
Material de la sonda	Plastique
Tipus de connector per a sondes	Raymarine propriétaire
Longitud del cable	10.0
Amplada del producte	70
Sensor de temperatura integrat	Oui
Alçada del producte	120
Pantalles compatibles	Écrans multifonctions Raymarine (Axiom, Element, eS/gS avec module CP100/CP200), Raymarine Dragonfly
Fondària del producte	70
Grau de protecció IP	IPX6 / IPX7
Tipus de muntatge	Traversante
Certificacions	CE,ISO 8846
Rang de mesura de temperatura	-15 à 55 °C
Angle de cobertura del feix	20
Freqüència CHIRP alta	170-230
Tipus de pesca	Mer, Lac, Verticale, Traîne
Sensor de velocitat integrat	Non
Any de llançament	2017.0
Nivell d'usuari	Intermédiaire

Detailed description

Dissenyada per a una integració òptima en cascs de fibra de vidre, la sonda plàstica transversal Raymarine CPT-S (referència A80448) proporciona una imatge submarina precisa gràcies a la seva tecnologia HIGH CHIRP i el seu feix cònic de 20°. Aquest transductor és ideal per a embarcacions amb un carenat en V moderat a marcat, on l'angle de 20° compensa eficaçment la inclinació del casc, assegurant una cobertura sonar vertical estable i una detecció de blancs fiable. Aquest tipus de sonda és adequat per a cascs amb un deadrise més marcat (d'uns 16-24°).

Tecnologia CHIRP i posicionament

El CPT-S A80448 utilitza la tecnologia CHIRP per a una separació de blancs millorada i una resolució augmentada, permetent als usuaris identificar clarament les estructures submarines i els bancs de peixos. A diferència de les sondes CPT-S amb feix cònic de 0° (com el E70339 en plàstic o l’A80446 en bronze) destinades a cascs plans, o els models de 20° (E70341 en bronze o A80545 per a Dragonfly) dissenyats per a deadrises més marcats, aquesta versió de 20° està pensada per a deadrises més pronunciats, oferint una solució adequada per a cascs en V més marcats. La seva instal·lació transversal minimitza les turbulències, garantint un rendiment sonar constant fins i tot a altes velocitats, una característica sovint més difícil d’aconseguir amb les sondes de tauler posterior.

Integració i compatibilitat

El transductor CPT-S està certificat segons les normes 2013/53/EU i EN ISO 8846:2017, cosa que n’atesta la fiabilitat i seguretat per al medi marí. Es lliura amb un cable de 10 metres, que facilita la connexió als mòduls sondadors Raymarine compatibles. Tot i estar dissenyat específicament per als sistemes DownVision™, la seva versatilitat el converteix en una opció per a diversos ecosondadors Raymarine que admeten sondes CPT-S. El manteniment de la sonda és senzill, amb la possibilitat d’aplicar una pintura antisorral a base d’aigua per prevenir el creixement marí i mantenir un rendiment òptim.

Documentation

Type	Nom
	EN - Declaration de conformite - Sonde plastique traversante à faisceau conique HIGH CHIRP angle 12° CPT-S, 10m câble
	EN - Declaration de conformite - Sonde plastique traversante à faisceau conique HIGH CHIRP angle 12° CPT-S, 10m câble
	EN - Declaration de conformite - Sonde plastique traversante à faisceau conique HIGH CHIRP angle 12° CPT-S, 10m câble
	EN - Notice d'installation - Sonde plastique traversante à faisceau conique HIGH CHIRP angle 12° CPT-S, 10m câble
	FR - Notice d'installation - Sonde plastique traversante à faisceau conique HIGH CHIRP angle 12° CPT-S, 10m câble

Expert review

Pol CONIN

Responsable digital

« Technical analysis: Raymarine CPT-S 20° through-hull transducer for V-hulls with pronounced deadrise »

The Raymarine CPT-S through-hull plastic transducer with a 20° conical beam (A80448) is a technically relevant solution for fiberglass boat owners with a pronounced V-hull (deadrise of approximately 16-24°). Its 20° positioning is a major advantage for hulls with a matching deadrise, as it compensates for the hull angle and ensures the sonar beam is projected vertically, maximizing echo return accuracy without requiring additional wedges. This model is particularly suited to recreational or coastal fishing vessels seeking high-quality CHIRP performance without the installation constraints or costs associated with bronze transducers for more demanding hulls.

The through-hull installation, while requiring hull drilling, is the preferred method for achieving optimal sonar performance by eliminating water turbulence interference often encountered with transom-mount transducers. It is critical to select a location where water flow is least disturbed. The plastic construction of this transducer is compatible exclusively with fiberglass hulls, thus avoiding galvanic corrosion issues. For wooden or metal hulls, a bronze CPT-S transducer should be considered, offering better compatibility and increased robustness. The 10-meter cable length provides sufficient flexibility for most installations, but careful routing is required to avoid electromagnetic interference.

This transducer, being a 20° CPT-S model, is specifically designed for hulls with a more pronounced deadrise, distinguishing it from 0° models (for flat hulls) or 12° models (for moderate deadrises, if available for other SKUs). It delivers excellent value for compatible Raymarine systems, particularly those using DownVision™ technology, by providing clear and detailed seabed images. However, for very deep-water fishing applications or extreme target detection requirements, more powerful and multi-element CHIRP transducers may be considered. The A80448 is a reliable and high-performing choice for navigation and recreational fishing.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Sonda plàstica transversal amb feix cònic HIGH CHIRP angle 12° CPT-S, cable de 10 m

298,27€

298,27€ ~~318,00€~~

Complete your installation with

Complementary equipment

Raymarine

Display i50 Depth sondador

Ref : E70059

514,55€

514,55€ ~~594,00€~~

Frequently Asked Questions

Need help? Contact us

What is the Raymarine CPT-S A80448 through-hull plastic transducer used for?

The Raymarine CPT-S A80448 is a through-hull plastic transducer designed for precise underwater imaging. It uses HIGH CHIRP technology to clearly detect underwater structures and fish schools. Its through-hull installation is ideal for fiberglass hulls, minimizing turbulence for consistent sonar performance.

Can I shorten the depth sounder’s cable if its length is excessive for my installation?

No, it is strongly discouraged to cut the depth sounder’s cable. Trimming the cable significantly reduces the fishfinder’s performance. Moreover, this would void the product warranty and invalidate the CE mark. If the cable is cut, it must be replaced as it cannot be repaired.

With which Raymarine devices is this CPT-S A80448 transducer compatible?

The CPT-S A80448 transducer is designed to be compatible with Raymarine sounder modules that support CPT-S transducers. While it is specifically optimized for DownVision™ systems, its versatility makes it compatible with various Raymarine fishfinders supporting this technology. It comes with a 10-meter cable for connection.

How to maintain and clean my Raymarine CPT-S A80448 transducer?

To maintain your depth sounder's performance, it is important to clean it regularly:

Fouling prevention: To avoid the buildup of marine growth, you can apply a thin coat of water-based antifouling paint, available from your marine dealer. Reapply the paint every 6 months or at the start of each sailing season.Cleaning: Use a soft cloth and mild household detergent. For severe fouling, a scouring pad (such as a green Scotch Brite™ pad) can be used, taking care not to scratch the sounder's surface.Precautions: Never use harsh solvents like acetone, ketone-based paint, or spray paint, as they will damage the sounder.

Is the Raymarine CPT-S A80448 transducer compliant with European standards?

Yes, the Raymarine CPT-S A80448 transducer is certified compliant with European standards. It meets Directive 2013/53/EU (Recreational Craft Directive) and standard EN ISO 8846:2017 (Small craft – Protection devices against ignition of petrol engines). These certifications confirm its reliability and safety for the marine environment.
