Samlex

CB823

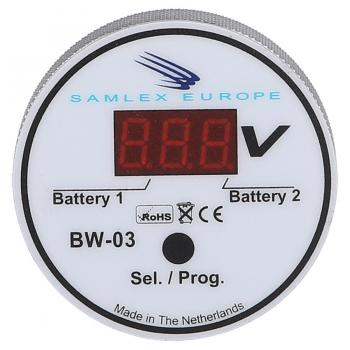

Controlador automàtic de bateries 12/24V

null

Public priceGet pro pricing

90,79€

90,79€ ~~105,00€~~

IVA inclòs Expedició calculada en el moment del pagament.

Estoc baix

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Service d'assistance

Choose additional assistance for installation

Technical specifications

Nombre de bancs de bateries	3.0
Funcions de protecció	Over-voltage, Under-voltage
Tipus de connexió	Filaire (shunt, bornes batterie, interface PC)
Tipus de muntatge	Encastré
Dimensions (L x A x P)	60 (diamètre) x 20 (profondeur) mm
Monitoratge integrat de la bateria	Oui
Current Monitoring Bank Count	2
Display Modes	Analogique,Digital,Graphique
Diàmetre dels forats de fixació	55
Pc Interface Dimensions Whd	86 x 66 x 27
Pc Interface Included	Oui
Power Consumption Current Max	9
Rang de tensió d'alimentació	9-35
Recommended Battery Capacity Range Ah	20-999
Compatibilitat del sistema	E-XPERT pro
Voltage Measurement Range	0-32

Detailed description

El controlador automàtic de bateries Samlex CB823 és una solució de gestió energètica dissenyada per al monitoratge precís de diversos parcs de bateries en entorns marins o autònoms. A diferència dels reguladors de càrrega solar com els Samlex MSK-10A, MSK-20A o SCC-30AB, que gestionen el flux d’energia dels panells solars, o dels aïlladors de càrrega automàtics com l’ACR-160, que gestiona la repartició de càrrega entre bateries, el CB823 se centra en l’adquisició i la visualització de dades detallades sobre l’estat de les bateries.

Monitoratge multi-parcs i capacitat ampliada

Aquest controlador permet monitorar fins a tres parcs de bateries en tensió i dos parcs en corrent. Ofereix una visualització de dades en mode analògic, digital o gràfic, cobrint un rang de tensió de 0 a 32 VDC. La capacitat de bateria gestionada s’estén de 20 Ah a 999 Ah, i pot ampliar-se fins a 9999 Ah mitjançant funcionalitats addicionals no detallades aquí. El CB823 integra també alarmes de tensió alta i baixa en els tres parcs de bateries, assegurant una detecció ràpida de problemes potencials. La seva alimentació és compatible amb sistemes de 9-35 VDC, i el seu consum és de 9 mA a 12 V, minimitzant l’impacte sobre l’autonomia.

Integració i instal·lació

El controlador CB823 es distingeix pel seu paper d’interfície. Inclou una caixa d’interfície per a PC (dimensions 86x66x27mm) i un cable de connexió al sistema E-XPERT pro, indicant una capacitat d’integració en sistemes de gestió d’energia més complexos. Les dimensions de la unitat principal són de Ø 60x20mm, requerint un forat de 55mm per a una instal·lació encastada, seguida d’un cargolament sobre anell. Aquestes característiques el posicionen com a mòdul de monitoratge i alerta, essencial per als usuaris que necessiten una visibilitat augmentada sobre la salut dels seus parcs de bateries, complementari als dispositius de càrrega o d’aïllament Samlex.

Documentation

Type	Nom

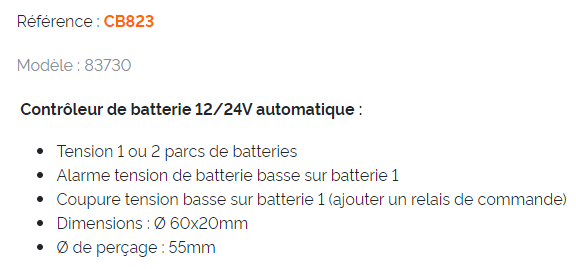

	EN - Detailed technical datasheet - Automatic 12/24V battery monitor

Expert review

Pol CONIN

Responsable digital

« Technical analysis of the Samlex CB823 battery controller »

The Samlex CB823 battery controller is a critical component for any marine or standalone electrical system requiring precise energy management. Unlike a simple voltmeter, this module provides deep visibility into the state of multiple battery banks, which is crucial for anticipating failures and optimizing battery lifespan. Its role as an interface with an E-XPERT pro system is designed for installations where centralized data is required, enabling users to have a comprehensive dashboard of their consumption and production.

Installation requires a 55 mm hole for flush mounting, typical of dashboards or control panels. Its automatic 12/24V detection simplifies integration into various systems without complex manual configuration of nominal voltage. This controller is particularly suited for vessels equipped with multiple banks (starting, service, thruster) where individual monitoring of voltage and current is essential. It is not a charger or isolator but a diagnostic and alert tool. Therefore, it is complementary and not substitutable for solar regulators or couplers. Its utility lies in providing raw data and preventive alerts, enabling rapid intervention in case of battery parameter drift.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Controlador automàtic de bateries 12/24V

90,79€

90,79€ ~~105,00€~~

Complete your installation with

Complementary equipment

Tallabateries 2 bancs en paral·lel EZ 400 A continu 1/1&2/Paral·lel/Off 48 V

BEP Marine

Tallabateries 2 bancs en paral·lel EZ 400 A continu 1/1&2/Paral·lel/Off 48 V

Ref : 772-DBC

81,53€

81,53€ ~~112,20€~~

BEP Marine

Tallabateries bipolar 400 A 48 V

Ref : 770-DP

82,54€

82,54€ ~~114,78€~~

BEP Marine

Tallabateries bipolars EZ 400 A

Ref : 770-DP-EZ

89,93€

89,93€ ~~127,20€~~

Tallabateries de bateria telecomandat 275A 32V

BEP Marine

Tallabateries de bateria telecomandat 275A 32V

Ref : AD185

182,14€

182,14€ ~~238,44€~~

À la coupe

Skysat

Cable 10mm² HI FLEX vermell

Ref : KA101

4,31€

4,31€ ~~4,78€~~

4,31€ m

BEP Marine

Barra omnibus de 4 cargols 500 A

Ref : 777-BB4S-500-B

64,58€

64,58€ ~~92,88€~~

BEP Marine

Barra omnibus 5 terminals 650 A

Ref : 777-BB5S-650-B

88,50€

88,50€ ~~118,26€~~

Frequently Asked Questions

Need help? Contact us

What is the Samlex CB823 battery monitor used for?

The Samlex CB823 automatic battery controller is an energy management solution designed for precise and detailed monitoring of multiple battery banks. It focuses on data acquisition and display such as voltage and current, enabling efficient monitoring in marine or standalone environments.

How many battery banks can the CB823 monitor simultaneously?

The Samlex CB823 controller can monitor up to three battery banks in voltage and two banks in current.

What types of information does the CB823 controller display?

The CB823 controller displays detailed information on battery bank voltage and current for two banks. This data can be viewed in analog, digital, or graphical mode.

What is the voltage range that the CB823 can measure?

The CB823 controller can monitor voltages from 0 to 32 VDC.

What is the maximum capacity of battery banks managed by the CB823?

The CB823 can manage battery banks with a capacity ranging from 20 Ah to 999 Ah. This capacity can be extended to 9999 Ah with additional features.

Does the CB823 controller include alarms for batteries?

Yes, the CB823 integrates high and low voltage alarms that can be configured for the three monitored battery banks, ensuring rapid detection of potential issues.

What is the electrical consumption of the Samlex CB823 controller?

The CB823 controller has a low power consumption of just 9 mA at 12 V, minimizing its impact on your system's battery life.

Is the CB823 a solar charge controller?

No, the Samlex CB823 is not a solar charge controller. It differs from charge controllers that manage the energy flow from solar panels. Its primary role is monitoring and displaying battery data.

Is the CB823 an automatic charge isolator?

No, the Samlex CB823 is not an automatic charge isolator. It does not manage load distribution between batteries, unlike charge isolators. Its function is to monitor and display the battery status.

Which components are included in the CB823 battery monitor kit?

The CB823 controller kit includes:

Main controller unitA PC interface box (86x66x27mm dimensions)A cable for connection to the E-XPERT pro system

How are data displayed on the CB823 controller screen?

Voltage data is displayed on the CB823 controller screen in three different ways: in analog mode, in digital mode, or as a graph.

What is the required power supply voltage range for the CB823 controller?

The CB823 controller is compatible with a 9 to 35 VDC power supply.

What are the physical dimensions of the CB823 battery controller?

The CB823 controller’s main unit measures Ø 60x20mm. The included PC interface box measures 86x66x27mm.

What diameter hole is required for flush-mount installation of the CB823?

For a flush-mounted installation of the CB823 controller main unit, a hole with a diameter of 55mm is required.

How is the CB823 controller installed?

The main unit of the CB823 controller is installed by drilling a 55mm hole, followed by screwing it onto a ring for secure mounting.

Can the CB823 connect to a computer?

Yes, the CB823 kit includes a PC interface box (86x66x27mm) and a connection cable, allowing connection to a computer for integration into more complex energy management systems.

Is the CB823 controller compatible with 12V and 24V electrical systems?

Yes, the CB823 controller is designed to operate with 12 V and 24 V electrical systems, thanks to its 9 to 35 VDC power input range.

Can the CB823 be integrated into larger energy management systems?

Yes, the CB823 controller is designed to integrate into more complex energy management systems, particularly via its connection cable to the E-XPERT pro system.
