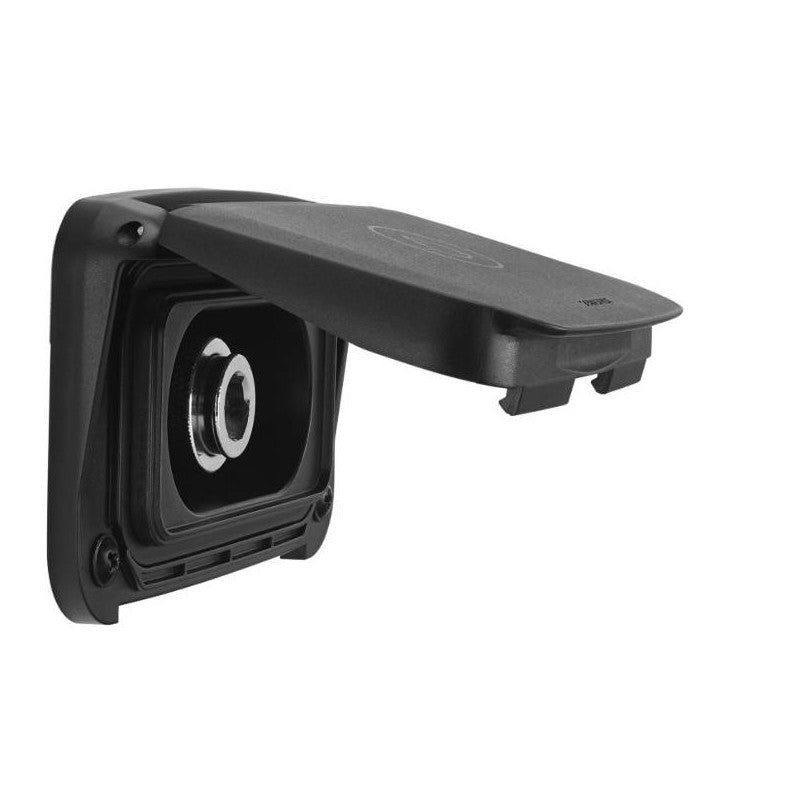

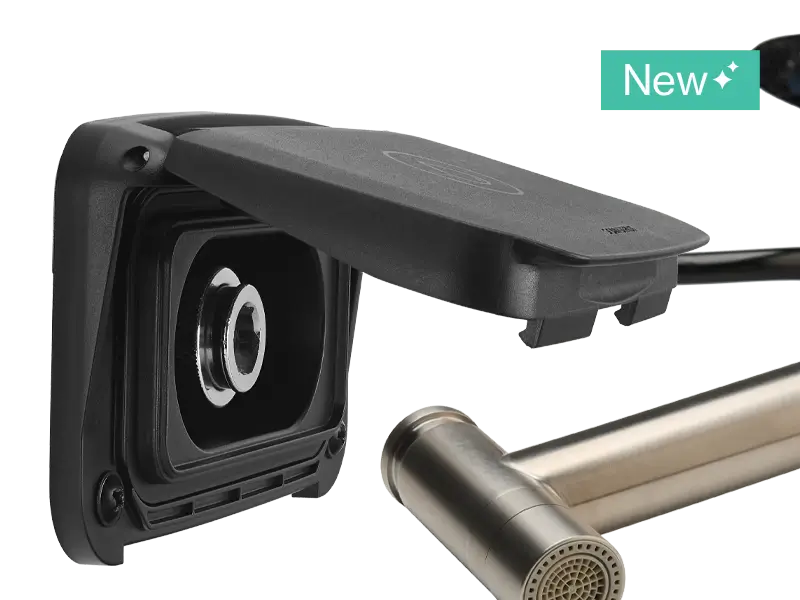

Sortida d'aigua freda amb kit de rentat - Ventura Series

Name: Sortida d'aigua freda amb kit de rentat - Ventura Series
Brand: Scanstrut
SKU: SC-V-W1
Price: 92.40 EUR
Availability: InStock

null

Public priceGet pro pricing

92,40€

IVA inclòs Expedició calculada en el moment del pagament.

En estoc

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Service d'assistance

Choose additional assistance for installation

Detailed description

Sortida d'aigua freda amb kit de rentat - Ventura Series de Scanstrut per a instal·lació o manteniment nàutic.

Referència SC-V-W1. Verifiqueu la compatibilitat tècnica, les dimensions i les restriccions de muntatge amb el vostre equipament abans de realitzar la comanda.

Documentation

Type	Nom
	__technical__TEC-007138.pdf
	retail.pdf
	technical.pdf

Payment and security

Your payment information and data are processed securely.

Sortida d'aigua freda amb kit de rentat - Ventura Series

92,40€

Frequently Asked Questions

Need help? Contact us

What is the maximum pressure that the Scanstrut Ventura cold water outlet can withstand?

The Scanstrut Ventura cold water outlet is designed to withstand a maximum pressure of 8 BAR (115 PSI) from your water system.

What are the specifications of the wash-down hose included in the kit?

The kit includes a wash-down hose made of PU (polyurethane) material with an uncoiled length of 3 meters (10 feet). Its diameter is 9 mm (0.35 inch).

Is the wash-down gun supplied with the water outlet adjustable?

Yes, the wash-down gun has an adjustable spray for adapting to your cleaning needs. It is made of stainless steel and includes a locking switch for flow control.

What is the waterproof rating of the Ventura Series cold water outlet?

The Ventura Series cold water outlet has IP68 and IP69K waterproof certifications. This protection applies to the front face of the device only when the cover is closed.

What type of connection is required to connect the water outlet to the boat's water system?

To connect the water outlet to your boat's water system, you will need a ½” BSP standard female hose fitting. This fitting is not included in the kit.

What are the drilling dimensions for installing the Scanstrut Ventura cold water outlet?

For installation, you will need to drill two holes of Ø38 mm (1.5 inches) and pilot holes for the four #6 mounting screws. A drilling template is provided in the technical documentation for precise installation.

Does the washdown kit include an isolation valve for maintenance?

The washdown kit does not include an isolation valve. However, it is recommended to install a ½” BSP isolation valve between the connection and your boat’s water system to facilitate future maintenance.
