Victron Energy

ORI121210110

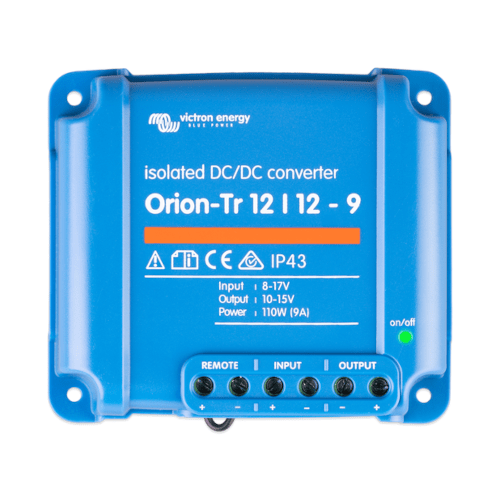

Convertidor aïllat Orion Tr 12/12-9A DC-DC converter IP20

null

Public priceGet pro pricing

60,10€

60,10€ ~~81,60€~~

IVA inclòs Expedició calculada en el moment del pagament.

Estoc baix

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Service d'assistance

Choose additional assistance for installation

Technical specifications

Grau de protecció IP	IP20
Interval de temperatura de funcionament	-20 à 55 °C
Dimensions (L x A x P)	113 x 100 x 47 mm
Tipus de muntatge	Montage en surface (bornes à vis)
Entrada amb fil	Bornes à vis
Sortida amb fil	Bornes à vis
Tensió d'entrada nominal	12.0
Rang de tensió d'entrada	8-17 V
Tensió de sortida nominal	12.2
Potència contínua a 25°C	110.0
Potència de sortida contínua (40°C)	85.0
Potència de pic	152.5
Eficiència màxima	87.0
Aïllament galvànic	Oui
Connexió en paral·lel	Oui
Suport d'engegada/aturada remota	Oui
Protecció contra curtcircuits	Oui
Topologia del convertidor	Buck-boost (Dévolteur-survolteur)
Eficiència energètica	87.0
Emission Standards	EN 61000-6-3, EN 55014-1
Tensió d'aïllament galvànic	200.0
Input Disconnect Voltage	7
Corrent de sortida	9.0
Potència de sortida màxima	110.0
Tensió de sortida ajustable	Oui
Rang de regulació de la tensió de sortida	10-15 V
Output Voltage Tolerance V	0.2
Corrent de sortida de pic	40
Peak Output Current Duration	10
Tipus de conversió d'energia	DC-DC
Safety Standards	EN 60950
Temperature Derating Description	Réduction de 3 % par °C au-dessus de 40 °C
Undervoltage Reconnect Threshold	7.5

Detailed description

Dissenyat per proporcionar una alimentació de 12 V CC estable i aïllada a partir d’una font de 12 V, el convertidor Victron Energy Orion Tr 12/12-9A (ORI121210110) és una solució de condicionament d’energia. Aquest convertidor DC-DC aïllat ofereix una potència contínua de 110 W a 25 °C i un corrent de sortida de 9 A a una tensió nominal de 12,2 V. La seva gamma de tensió d’entrada de 8 a 17 V garanteix un funcionament fiable fins i tot amb variacions de tensió del sistema d’alimentació principal.

Característiques tècniques i versatilitat

L’Orion Tr 12/12-9A destaca per la seva tensió de sortida regulable entre 10 i 15 V, cosa que permet utilitzar-lo com a carregador de bateries per a bateries de 12 V dedicades. La funció d’engegada/aturada a distància simplifica la integració en sistemes complexos, eliminant la necessitat d’un interruptor d’alta intensitat. El dispositiu està protegit contra curtcircuits i incorpora un fusible intern no substituïble per a la seguretat. La seva capacitat de connectar-se en paral·lel permet augmentar el corrent de sortida total per a aplicacions que requereixen més potència. En comparació amb els models Orion Tr de potència superior (per exemple, les versions de 220 W o 280 W), el 12/12-9A és adequat per a instal·lacions de menor consum o quan es prioritza la connexió en paral·lel de diverses unitats per obtenir una major modularitat.

Integració i compliment normatiu

Amb unes dimensions compactes de 100 x 113 x 47 mm i un pes de 0,42 kg, aquest convertidor s’instal·la mitjançant terminals de cargol, cosa que simplifica el cablejat. L’aïllament galvànic de 200 V CC entre l’entrada, la sortida i la carcassa assegura una separació elèctrica essencial per a la protecció d’equips sensibles i la prevenció de bucles de massa. L’Orion Tr 12/12-9A compleix les normes EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2 i ECE R10-5, cosa que n’atesta la fiabilitat i la compatibilitat electromagnètica. La seva gamma de temperatura d’ús s’estén de -20 a +55 °C, amb una reducció del 3 % del corrent per °C més enllà dels 40 °C. L’índex de protecció és IP20, però pot assolir IP43 quan s’instal·la amb els terminals orientats cap avall.

Documentation

Type	Nom
	FR - Fiche technique - Convertisseur isolé Orion Tr 12/12-9A DC-DC converter IP20

Expert review

Pol CONIN

Responsable digital

« Orion Tr 12/12-9A: galvanic isolation for 12V marine systems »

The Victron Energy Orion Tr 12/12-9A converter is a fundamental component for onboard energy management, particularly on mid-sized sailboats and powerboats requiring dedicated and stable 12V power. Its galvanic isolation function is a major asset, allowing the creation of separate electrical networks. This is crucial to prevent electromagnetic interference, ground loops, and to protect sensitive electronic equipment (navigation, communication) from disturbances originating in other circuits (engine, service loads).

Unlike non-isolated Orion models, this Tr model provides enhanced safety for installations where ground separation is mandatory. It is ideal for powering specific equipment, maintaining the charge of a 12V auxiliary battery from the main 12V circuit, or stabilizing a voltage prone to drops. For example, it can ensure a constant voltage for a navigation system even when the service battery voltage fluctuates.

Installation is simplified by screw terminals and a remote on/off function that allows easy control via a low-power switch or engine command. It is important to note that its IP20 protection rating requires mounting in a dry and protected compartment, though it can reach IP43 if the terminals are oriented downward. For power requirements exceeding 110W, consider higher-power isolated Orion Tr models (220W, 280W) or paralleling multiple units of this model, a feature supported by Victron Energy.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Convertidor aïllat Orion Tr 12/12-9A DC-DC converter IP20

60,10€

60,10€ ~~81,60€~~

Complete your installation with

Complementary equipment

Victron Energy

Controlador de bateria SmartShunt IP65 500A

Ref : SHU050150050

111,00€

111,00€ ~~128,40€~~

Victron Energy

Panneig fotovoltaic monocristal·lí Bluesolar 12V 115Wc sèrie 4a 1015 x 668 x 30mm

Ref : SPM041151200

92,89€

92,89€ ~~124,80€~~

Victron Energy

Centre de comunicacions Cerbo GX

Ref : BPP900450100

276,00€

276,00€ ~~370,80€~~

Victron Energy

Argofet 200-2 repartidor de bateries

Ref : ARG200201020

109,09€

109,09€ ~~153,60€~~

Frequently Asked Questions

Need help? Contact us

What is the main function of the Victron Energy Orion Tr 12/12-9A converter?

The Victron Energy Orion Tr 12/12-9A converter is designed to provide a stable, isolated 12 V DC power supply from a 12 V power source. It is a power conditioning solution that ensures a constant output voltage even when input voltage varies.

What are the input and output voltages of this converter?

This converter has an input voltage range of 8 to 17 V. Its nominal output voltage is 12.2 V, and it is adjustable between 10 and 15 V.

What is the continuous output power of the Orion TR 12/12-9A?

The Orion Tr 12/12-9A converter provides a continuous output power of 110 W at an ambient temperature of 25 °C. At 40 °C, the continuous output power is 85 W.

Can this converter be used to charge a battery?

Yes, the Victron Energy Orion Tr 12/12-9A output voltage is adjustable between 10 and 15 V, allowing it to be used as a battery charger for dedicated 12 V batteries.

What is the efficiency of this converter?

The efficiency of this converter is 87%.

What is the operating temperature range of this device?

The operating temperature range of the Orion Tr 12/12-9A converter is -20 to 55 °C. It is important to note that a 3 % power reduction applies per degree Celsius above 40 °C.

What is the ingress protection (IP) rating of this converter? Is it waterproof?

This converter has an IP20 protection rating. This means it is protected against solid objects larger than 12.5 mm but is not protected against water. It is therefore not waterproof and must be installed in a dry environment.

Does the Victron Energy Orion TR 12/12-9A DC-DC converter provide galvanic isolation?

Yes, this converter provides 200 V DC galvanic isolation between the input, output, and case. This isolation is essential for protecting sensitive equipment and preventing ground loops.

What are the dimensions and weight of the Victron Energy Orion Tr 12/12-9A?

The compact dimensions of this converter are 100 x 113 x 47 mm (Height x Width x Depth). Its weight is approximately 0.42 kg.

What safety features are included in this converter?

The Orion Tr 12/12-9A converter is protected against output short-circuits. It also features an internal non-replaceable fuse for enhanced safety. Additionally, it complies with several safety, emission, and immunity standards, including EN 60950 and ECE R10-5.

What is the DC output current of this converter?

The DC output current of this converter is 9 A at the nominal output voltage and at a temperature of 25 °C. The maximum output current (for 10 seconds) is 12.5 A.

What is the output voltage noise?

The output noise of the voltage is 2 mV rms.

Can I connect multiple Orion Tr 12/12-9A converters in parallel to increase power output?

Yes, this converter can be connected in parallel. This allows the total output current to be increased for applications requiring more power, providing greater modularity for your installation.

What is the input voltage range for stable operation?

The input voltage range for stable operation of the Orion Tr 12/12-9A is 8 to 17 V. If the output voltage is set to the nominal voltage or lower, it will remain stable within this range.

Is this converter suitable for marine environments?

The Orion TR 12/12-9A converter is manufactured by Victron Energy, a brand recognized in the marine sector. However, its IP20 rating means it is not waterproof. For marine use, it must be installed in a dry location, protected from humidity and water splashes.

How is the converter connected? What type of terminals does it use?

The converter is installed using screw terminals, which simplifies wiring and ensures a secure connection.

Does the converter have a remote on/off function? How does it work?

Yes, the Orion Tr 12/12-9A converter is equipped with a remote on/off function. This feature simplifies its integration into complex systems by allowing remote control, eliminating the need for a high-current switch directly on the device.

What are the mounting options for this converter?

The Victron Energy Orion Tr 12/12-9A converter is designed to be installed using screw terminals. Its compact dimensions (100 x 113 x 47 mm) make it easy to integrate into various spaces.

What are the minimum and maximum adjustable output voltages?

The output voltage of this converter is adjustable within a range from 10 V to 15 V.

What happens if the input voltage becomes too low?

The converter has a low-voltage disconnect threshold at 7 V. If the input voltage drops below this threshold, the converter will disconnect to protect the equipment. It will automatically reconnect when the input voltage reaches 7.5 V.
