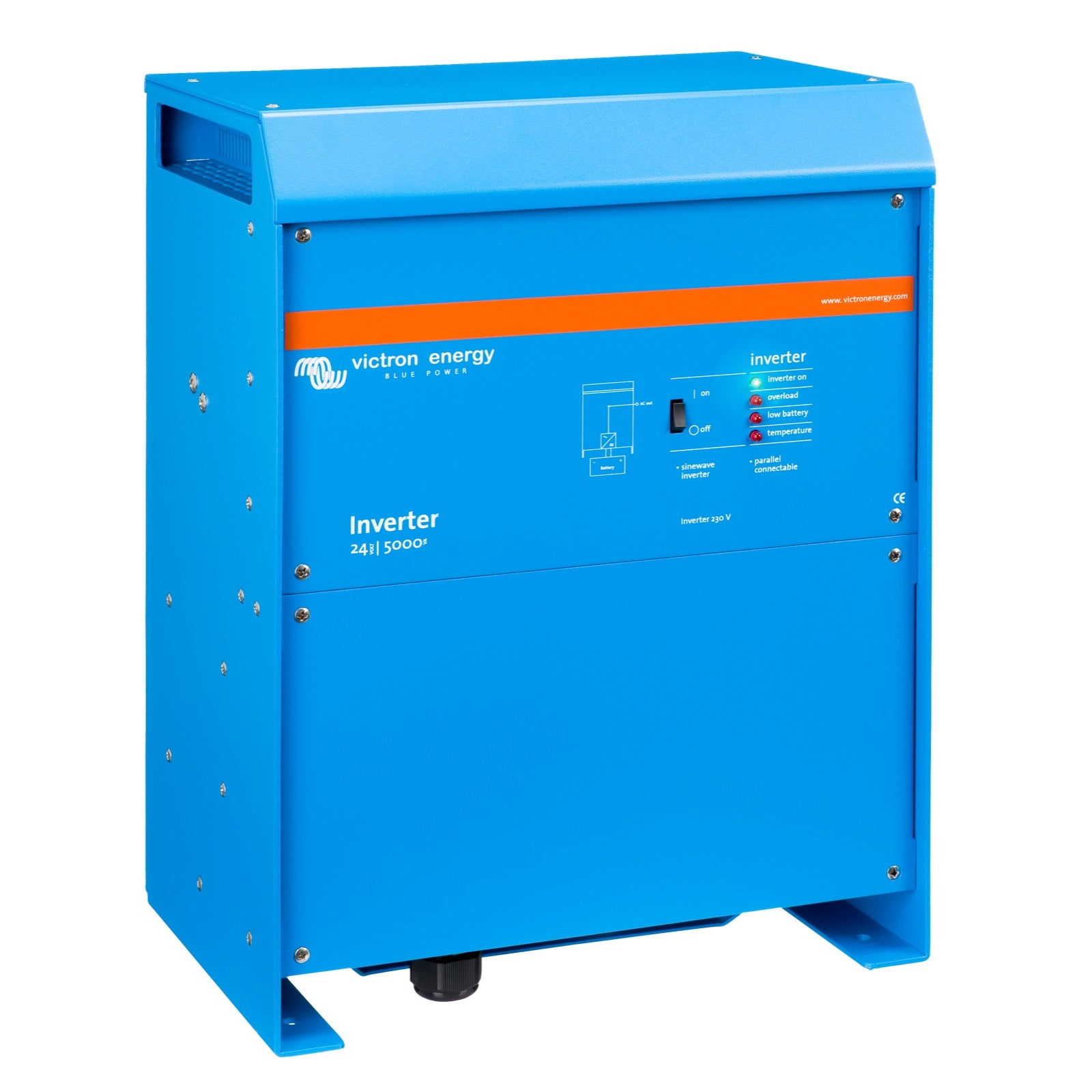

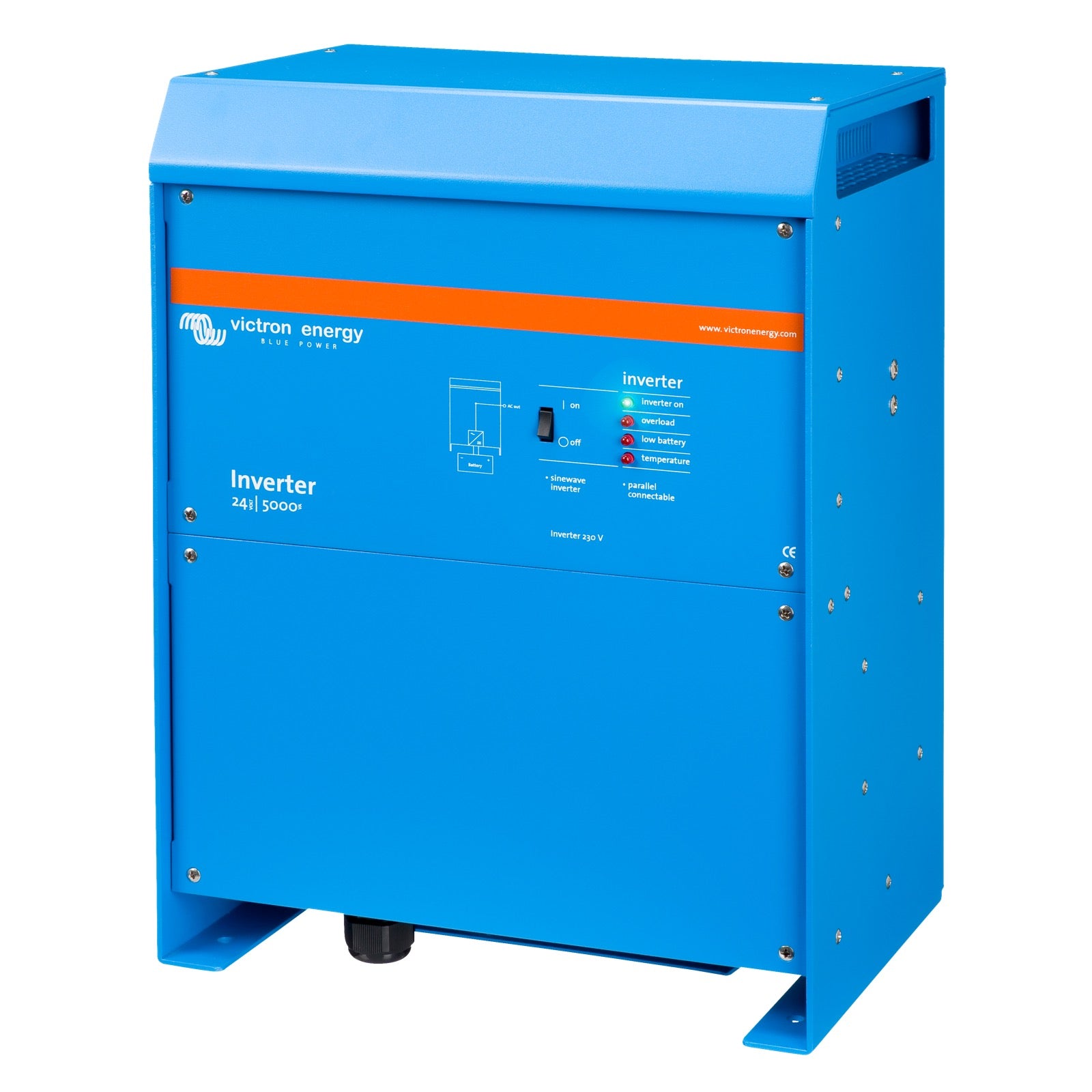

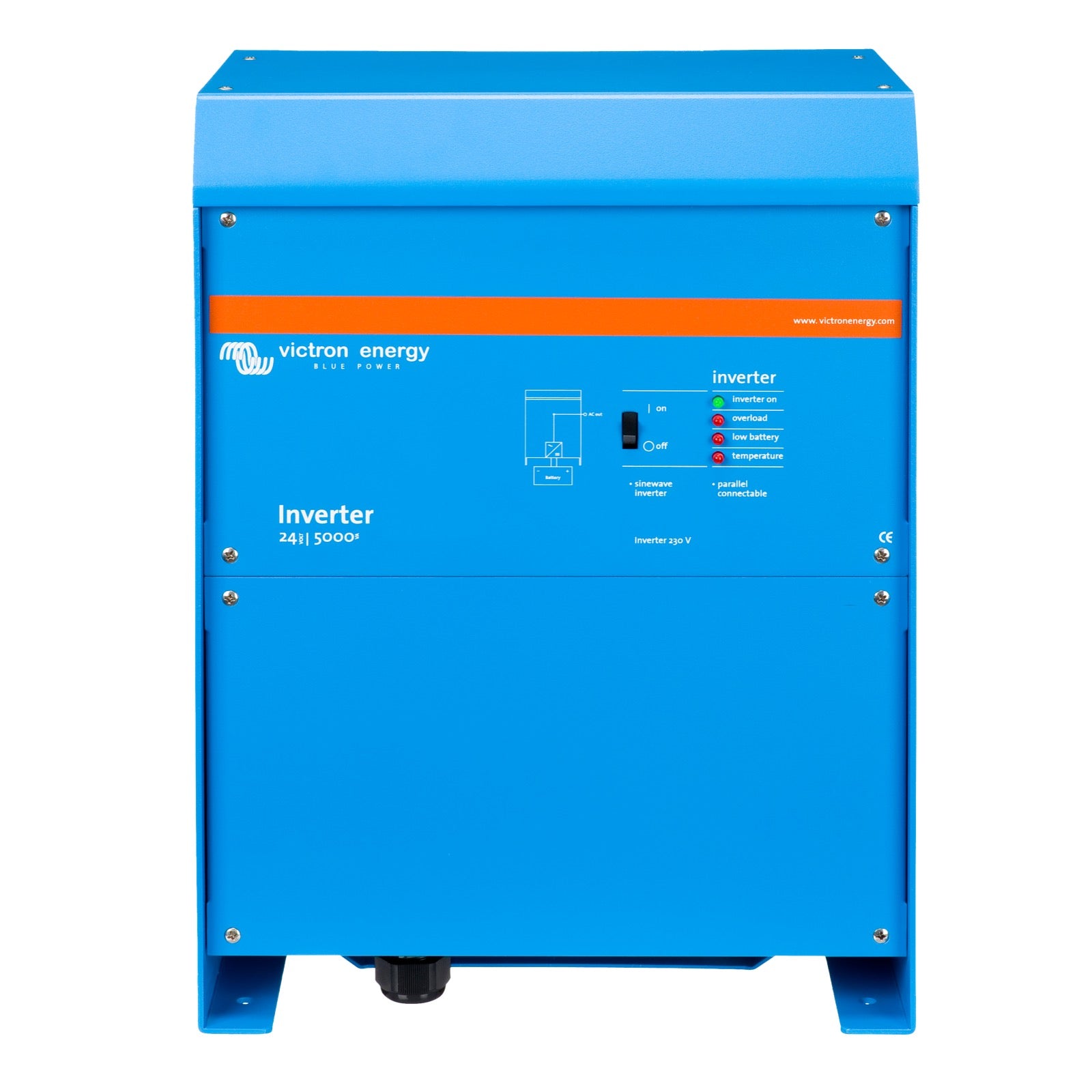

Inversor 24/5000 Smart

The Victron Energy 24/5000 Smart inverter delivers a continuous output power of 4000 W at 25 °C. This power is 3700 W at 40 °C.

This inverter can supply an impressive peak power of 10000 W, which is essential for starting inductive loads or devices requiring high inrush current.

Yes, this inverter uses SinusMax technology to produce a pure sine wave. This ensures stable and reliable power, compatible with all types of sensitive electronic devices.

Configuration and monitoring of the inverter are simplified thanks to the built-in Bluetooth and the VE.Direct communication port. You can use the VictronConnect app on your smartphone or tablet to access settings and real-time data.

Yes, the Victron Energy 24/5000 Smart inverter is fully configurable. You can adjust the output voltage within a range of 210 V to 245 V and select between 50 Hz or 60 Hz frequency based on your requirements.

For optimal performance, the inverter must be installed on a flat surface. It is crucial to ensure adequate ventilation by leaving at least 10 centimeters of free space around the device. Avoid direct exposure to sunlight and any contact with water. The inverter must not be installed in a humid or dusty environment, nor where there is a risk of gas or dust explosion.

The inverter is equipped with a two-pin connector for remote on/off control. You can connect an external switch or wire the left pin of the connector to the battery positive, which is useful for automotive applications (connection to the ignition switch).

Yes, as a Class I Safety product, the inverter's chassis must be grounded. A grounding point is located on the outside of the product. The grounding conductor must have at least half the cross-section of the conductors used for the battery connection.

No, the Victron Energy 24/5000 Smart inverter is specifically designed to operate with 24 V battery systems. It is not compatible with 12 V or 48 V systems.

Thanks to its high peak power (10000 W) and SinusMax technology, the inverter can power a wide range of AC loads, including demanding appliances such as refrigeration compressors, electric motors, power tools, and sensitive electronic equipment.

Yes, the Victron Energy 24/5000 Smart inverter is protected against output short-circuits, ensuring the safety of the device and your installation in case of a fault.

The Victron Energy 24/5000 Smart inverter uses M8 bolts for battery cable connections, ensuring a robust and secure connection.
