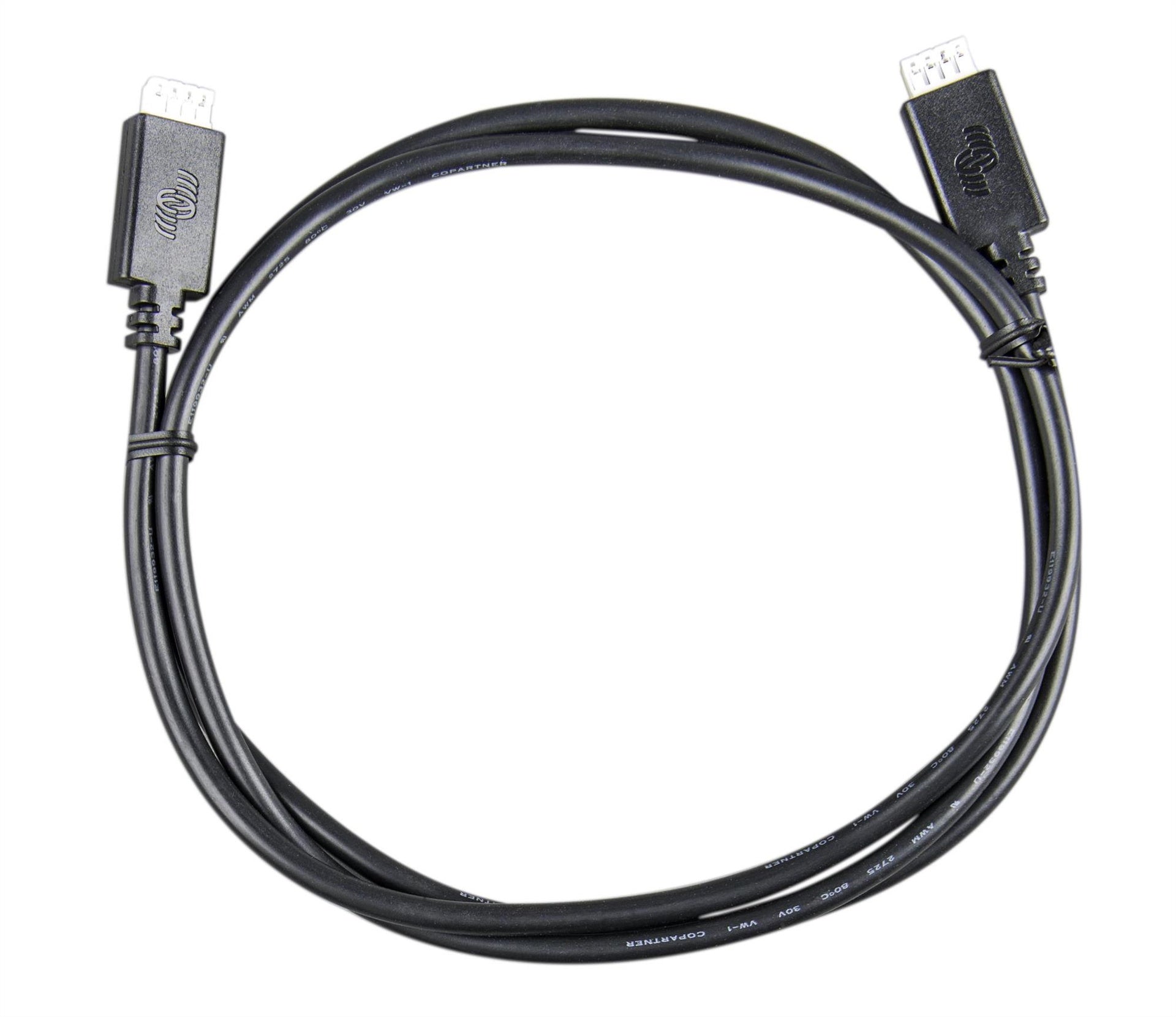

Cable VE.Direct 0,9 m

This Victron Energy VE.Direct cable measures precisely 0.9 meters. This length is ideal for short connections between your Victron Energy devices.

The VE.Direct cable is designed to establish a direct and reliable communication link between two compatible Victron Energy devices. It enables the transfer of critical data such as battery charge state, solar production, or power consumption, facilitating monitoring and control of your energy system.

The VE.Direct interface is a proprietary communication protocol developed by Victron Energy. It is used to connect Victron products together, enabling data exchange for monitoring, configuration, and system management via software like VictronConnect or supervision devices such as the Cerbo GX.

The VE.Direct cable is exclusively a data cable. It is designed for communication between Victron Energy devices and does not transmit electrical power for battery charging or powering devices.

No, the VE.Direct cable does not require external power. It is powered directly by the Victron Energy devices to which it is connected, simplifying installation and use.

Victron Energy products are often used in marine or demanding environments. Although this cable is an internal communication component, it is manufactured to Victron Energy's quality standards, ensuring good durability. For installation in highly exposed environments, it is recommended to protect it from direct elements (salt water, UV).

The VE.Direct cable uses Victron Energy's proprietary VE.Direct interface connectors. It features a 4-pin connector designed to fit perfectly into the VE.Direct ports on compatible Victron devices.

Yes, the VE.Direct cable can be used for firmware updates on compatible Victron Energy devices. By connecting your devices via this cable to a monitoring device (such as a Cerbo GX) or a PC (via a VE.Direct to USB interface, sold separately), you can access the update functions through the VictronConnect software.

This cable is compatible with all Victron Energy devices equipped with a VE.Direct port. This includes, but is not limited to:

Solar charge controllers MPPT (e.g., SmartSolar MPPT)Battery monitors BMV (e.g., BMV-712 Smart)Some inverter/chargers (e.g., MultiPlus Compact)Some DC-DC converters (e.g., Orion-Tr Smart)Monitoring devices (e.g., Cerbo GX)It is always recommended to check for a VE.Direct port in the Victron device's datasheet.

No, the VE.Direct cable is specifically designed for Victron Energy’s proprietary communication interface. It is not compatible with devices from other brands that do not use the VE.Direct protocol.

No, you cannot connect a PC directly with this VE.Direct cable. To connect a Victron Energy device to a PC and use VictronConnect software, you will need a VE.Direct to USB interface (sold separately) that converts the VE.Direct signal into a USB signal compatible with your computer.

Yes, the VE.Direct cable is fully compatible with the Cerbo GX and other devices in Victron Energy's GX range. It is the standard method for connecting your Victron devices (MPPT charge controllers, battery monitors, etc.) to the Cerbo GX for centralized monitoring and control.

No, the VE.Direct cable is designed for point-to-point connection. This means one cable connects one Victron device to another Victron device (for example, an MPPT charge controller to a Cerbo GX). You cannot connect multiple devices in series or in a chain with a single VE.Direct cable.

No, the VE.Direct cable does not replace an NMEA 2000 cable. VE.Direct is a proprietary communication interface from Victron Energy, optimized for exchanging specific data between Victron products. NMEA 2000 is a standardized network protocol for marine equipment from different brands. They are complementary and serve different purposes within a system.

Yes, installing this VE.Direct cable is very straightforward. It is a plug-and-play connection. Simply plug one end of the cable into the VE.Direct port of the first Victron device and the other end into the VE.Direct port of the second device.

No, the VE.Direct cable has no specific connection direction. Both ends of the cable are identical and can be connected either way to the VE.Direct ports on your Victron Energy devices.

No, no special tools are required to connect the VE.Direct cable. The connectors are designed to be plugged and unplugged manually, without the need for additional tools.

To ensure the cable is properly connected and working, check device detection in the VictronConnect software or on your Cerbo GX screen (or other GX device). If communication is established, the connected device's data should appear and be available for monitoring and configuration.

The VE.Direct cable is compatible with all Victron Energy devices featuring a VE.Direct port, whether they are recent or older models. The VE.Direct interface is a communication standard established by Victron Energy for its product range.
