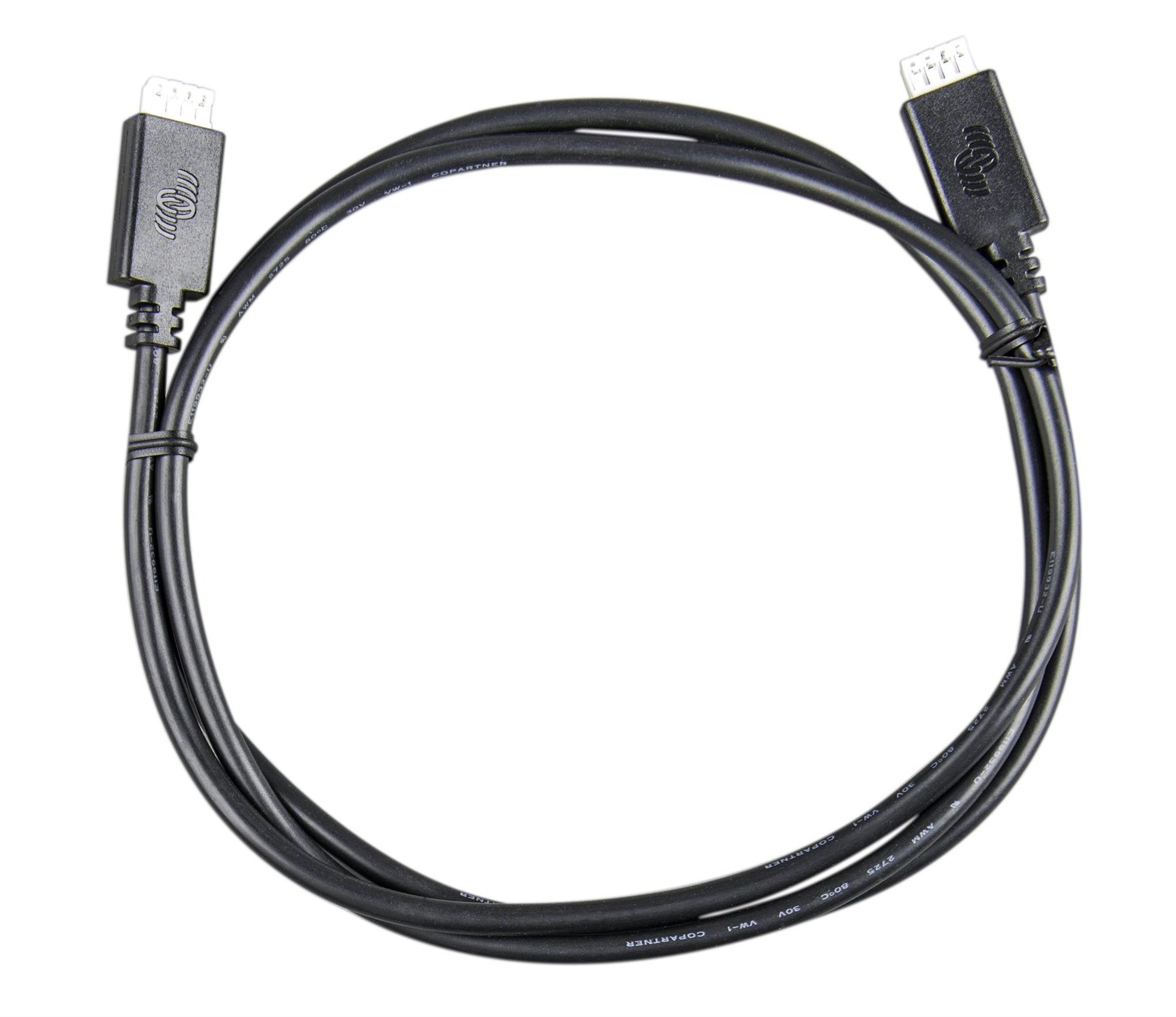

Cable VE.Direct 10m

A VE.Direct cable is a proprietary communication cable from Victron Energy, designed to establish a direct and secure connection between two Victron devices equipped with a VE.Direct port. It enables data exchange for monitoring, configuration, and management of energy systems.

This specific VE.Direct cable has a length of 10 meters. This length provides flexibility to connect devices located farther apart within your installation.

The VE.Direct protocol is used for communication between Victron low-power devices and monitoring units. It enables the transmission of critical data such as voltages, currents, power levels, and charge states, allowing continuous system monitoring and optimization.

VE.Direct is a point-to-point communication protocol optimized for low-power devices and direct connections. In contrast, VE.Bus is a more complex protocol designed to handle high data throughput, typically used with Victron Energy’s high-power inverters/chargers for more integrated and complex systems.

Yes, this cable is an original Victron Energy product. Using an original cable ensures perfect compatibility and optimal signal integrity, avoiding communication issues that can occur with unspecified cables.

Yes, like most Victron Energy products, this cable is designed to be robust and reliable, making it suitable for demanding environments, including marine applications, where reliable communication is critical.

Yes, the VE.Direct cable enables bidirectional communication. It transmits data from the device (e.g., a charge controller) to a monitoring device (such as a Cerbo GX) and can also receive commands or configuration updates in the opposite direction, depending on the capabilities of the connected devices.

The VE.Direct cable uses 4-pin, small and compact connectors, specifically designed for Victron Energy’s VE.Direct ports. These connectors ensure a secure and reliable connection.

The VE.Direct protocol uses serial communication with a typical transmission speed of 19,200 baud. This speed is optimized for efficient transmission of monitoring and configuration data between Victron devices.

No, the VE.Direct cable does not require external power. Victron devices' VE.Direct ports provide the low power needed for communication directly through the cable.

This cable is compatible with all Victron Energy devices equipped with a VE.Direct communication port. This includes, but is not limited to, MPPT solar charge controllers, BMV series battery monitors, some chargers, some small inverters, and communication gateways such as the Color Control GX and Cerbo GX.

Yes, this 10-metre VE.Direct cable is perfectly suited for connecting a Victron Energy BMV series battery monitor to another Victron device with a VE.Direct port, such as a Cerbo GX or a VE.Direct USB interface.

Yes, absolutely. This VE.Direct cable is designed to work with Victron Energy MPPT solar charge controllers that have a VE.Direct port, enabling monitoring and configuration of your solar system.

Yes, this cable is fully compatible with Victron Energy’s Cerbo GX and Color Control GX communication gateways. It allows VE.Direct devices to connect to these gateways for centralized monitoring and remote control of your system.

Yes, you can connect a Victron device to your computer using this VE.Direct cable, but you will need a specific interface. You require a "VE.Direct to USB" adapter (sold separately) that converts the VE.Direct signal to USB for your computer.

No, the VE.Direct cable uses a proprietary communication protocol from Victron Energy. It is not designed to be compatible with products from other brands that do not use the VE.Direct protocol and connectors.

Yes, Victron Energy offers VE.Direct cables in various lengths to suit different installation requirements. This product is the 10-metre version, but other lengths such as 0.3m, 0.9m, 1.8m, 3m, and 5m are also available from Victron Energy.

No, the VE.Direct cable is symmetrical. There is no specific connection direction for the cable itself. You can connect either end of the cable to any VE.Direct port on compatible devices.

Although this cable is 10 meters long, Victron Energy offers VE.Direct cables up to this length. For communication distances longer than 10 meters, it is generally recommended to use different communication interfaces (such as VE.Can or Ethernet via a Cerbo GX) to ensure signal integrity and reliability.

The VE.Direct cable is primarily designed for data transmission. While VE.Direct ports provide low power to supply the communication circuit, the cable does not transmit significant power to charge or power a main device. It is used for communication, not electrical power.
