Triton² speed/depth/wind pack, wired

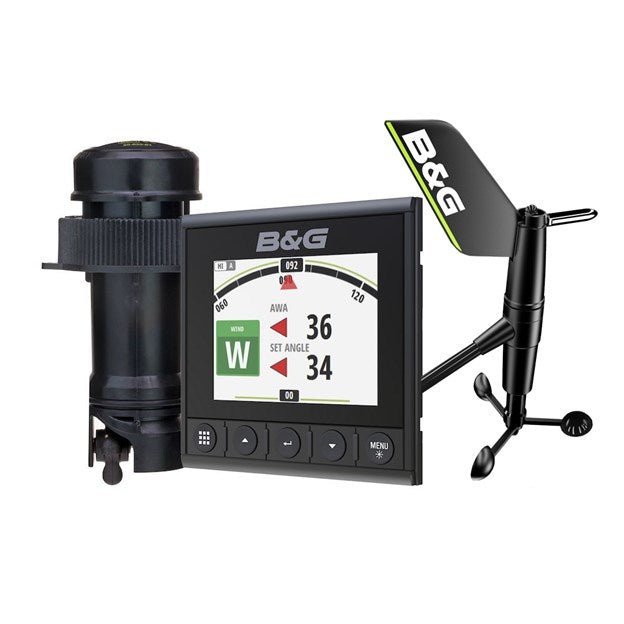

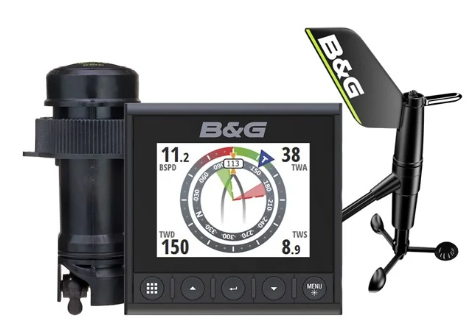

This complete pack includes the essential elements for instrumenting your sailboat:

A B&G Triton² multifunction displayA horizontal wired WS310 wind sensorAn interface for the WS310 wind sensorA 20-meter mast cable for the wind sensorAn IDST810 through-hull transducer that measures depth, speed, and water temperature

The Triton² display has high-performance features for optimal readability:

Size: 4.1-inch diagonal color screen.Resolution: 320 x 240 pixels.Technology: Optically bonded LCD screen, which prevents condensation and ensures excellent visibility, even in full sunlight and at various viewing angles.Waterproofing: IPX7 certified, protected against temporary immersion.

The entire pack is designed to operate on a NMEA 2000 network. This allows a simple and standardized connection with other compatible equipment, such as chartplotters, autopilots or other displays, regardless of brand, provided they are NMEA 2000 certified.

This pack includes the WS310 wired wind sensor system. A wired solution is preferred for its high reliability and stable, interference-free data transmission, which is critical for accurate wind data.

The IDST810 through-hull transducer is a tridata transducer. It measures and provides three essential types of data:

Water depth below the hullBoat speed through the water (surface speed)Water temperature

The kit includes a 20-metre mast cable to connect the WS310 horizontal wind sensor to its NMEA 2000 interface.

Yes, the Triton² display is highly customizable. You can select from several page layouts to show the data most relevant to you:

Single or double lineFour or nine data panelsHistogram view to track data trendsAnalog display (dial-style)Highway page for route tracking

The display’s electrical consumption is optimized. It draws 145 mA at 13.5 V with the backlight on, and drops to just 45 mA at 13.5 V when the backlight is off.

Yes, absolutely. The Triton² pack is designed to integrate seamlessly with B&G autopilots via the NMEA 2000 network. The Triton² display can even serve as a control screen for the autopilot, displaying modes (Auto, Wind, Navigation) and allowing heading adjustments.

Yes, the Triton² display screen was specifically designed for maximum readability in all conditions. Its optical-bonded LCD technology reduces glare and increases contrast, ensuring clear data readability even in full sunlight.

Yes, the Triton² display allows you to configure numerous alarms to enhance navigation safety. You can set alarms for:

Shallow water (low depth)Deep waterStrong windOff-course (route deviation)Anchor alarmWind shift

The Triton² display is designed to operate within a temperature range of -15 °C to +55 °C. Its storage temperature range is wider, from -30 °C to +70 °C.

You can configure the measurement units according to your preferences for different data:

Boat speed: knots (kn), kilometers per hour (km/h), or miles per hour (mph).Depth: meters (m), feet (ft), or fathoms (fa).Wind speed: knots (kn), meters per second (m/s).Temperature: degrees Celsius (°C) or Fahrenheit (°F).

The included IDST810 transducer is a plastic through-hull model. It is recommended for fiberglass or metal hulls. It is generally not advised for wooden hulls, as wood swelling could damage the transducer or compromise watertight integrity.

This pack includes the sensors and display, which all connect to an NMEA 2000 network. If your boat is not already equipped with an NMEA 2000 network, note that this pack already includes a starter kit (including the power cable, backbone cables, T-connectors, and terminators).

Yes. By using the NMEA 2000 standard, the speed, depth, temperature, and wind data from this pack can be shared and displayed on any NMEA 2000-certified chartplotter or multifunction display, regardless of brand. Integration is universal for standard data.

The Triton² display has an IPX7 ingress protection rating. This means it is protected against powerful water jets and can withstand accidental immersion in 1 meter of water for 30 minutes, making it perfectly suitable for cockpit installation.

The system provides comprehensive wind data, essential for sailing. You can display:

Apparent wind speed and angle (AWA & AWS)True wind speed and angle (TWA & TWS)True wind direction (TWD)

Installing a through-hull transducer such as the IDST810 requires drilling the boat’s hull below the waterline. It is strongly recommended to have a professional perform the installation or to strictly follow the manufacturer’s instructions to ensure correct and fully watertight installation.

Yes, if a GPS receiver is connected to your NMEA 2000 network, the Triton² display can show GPS data such as position (latitude/longitude), speed over ground (SOG), and course over ground (COG). The unit itself does not include a GPS sensor.
