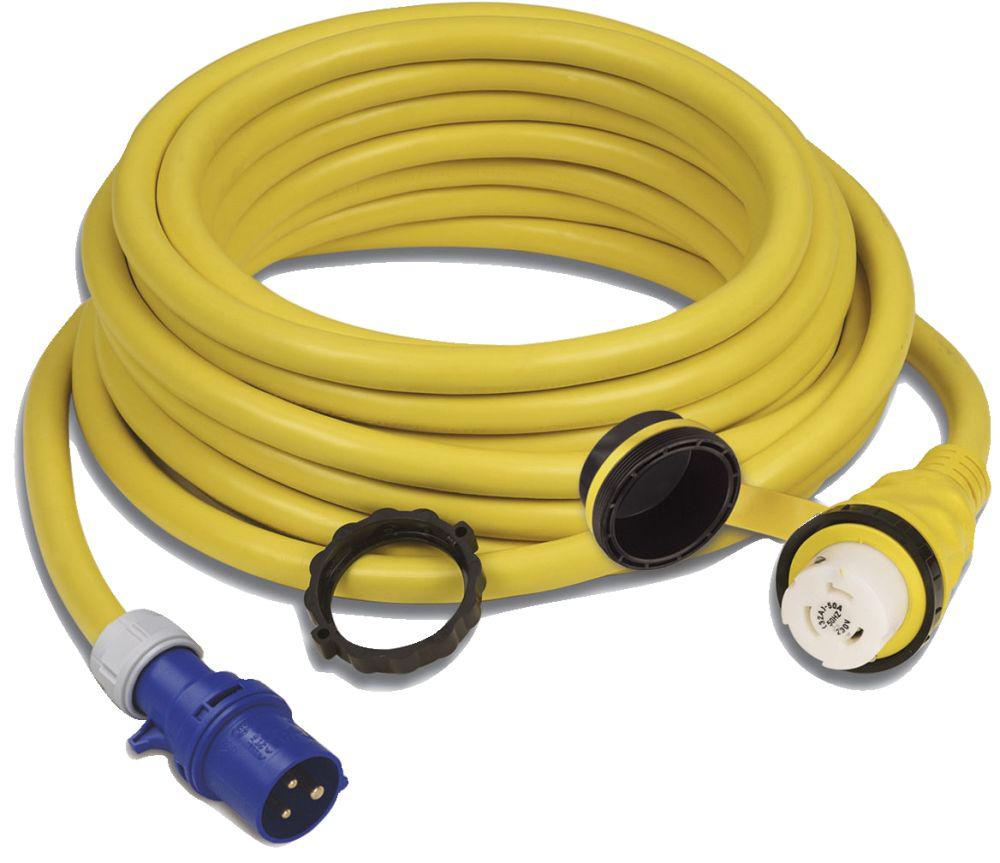

Waterproof deck extension cable 15m CEE 230V

The Marinco 15M32AXP extension cable is 15 meters long. This length is designed to provide sufficient reach between the dock power outlet and your vessel.

This watertight deck extension lead is rated for a maximum current of 32 amperes. It is suitable for vessels requiring higher electrical power for their equipment.

The Marinco 15M32AXP extension cord is specifically designed for 230V power supply, which is the standard voltage in many regions, particularly in Europe.

This extension is yellow. This color provides enhanced visibility on deck, thereby improving onboard safety by reducing the risk of tripping or forgetting it.

The Marinco 15M32AXP extension uses H07BQ-F 3G 4 mm² cable. This cable type is robust and suited for demanding environments, providing good mechanical resistance and weather resistance.

Yes, absolutely. Its marine-grade construction is specifically engineered to withstand demanding marine environments, including seawater and UV rays, while maintaining flexibility.

Yes, an integrated LED indicator is present on the extension cable. It signals power presence, making it easier to check the electrical connection status.

Yes, a sealing cap for the boat-side connector is supplied. It provides additional protection in accordance with CE requirements, particularly when the cable is not in use.

The main difference lies in the electrical power handling capacity. This 32A model is designed for vessels requiring higher electrical power, typically for high-consumption equipment or more complex onboard systems, unlike a 16A version.

Yes, the marine-grade construction of this extension is specifically designed to maintain its flexibility even in varying environmental conditions, including cold weather.

This extension cable is fitted with:

A Marinco watertight female connector certified IP56 for the boat-side connection.
An IEC 60309 2P+E [6H] 250V/50Hz plug (commonly known as a CEE plug) for connection to the shore power inlet.

Yes, thanks to its IEC 60309 2P+E [6H] 250V/50Hz plug, this extension cord is compatible with most standard European marina electrical hookups that use this CEE connector type for 230V power supply.

This 32A extension cord is ideal for boats equipped with high-power electrical systems, such as air conditioners, water heaters, powerful battery chargers, or other complex onboard equipment requiring a stable and robust power supply.

The Marinco 15M32AXP extension lead complies with ABYC, NMMA, and U.S. Coast Guard standards. It also holds CE certification, confirming its reliability and safety for marine use.

The connection to the boat is made via the Marinco waterproof female connector certified IP56. This connector is designed to plug into the corresponding male power socket on your vessel.

To connect the extension to the harbor outlet, use the IEC 60309 2P+E [6H] 250V/50Hz plug. This plug is designed to fit into standard 32A European harbor outlet sockets.

The Marinco connector on the boat side is IP56 certified, ensuring its watertightness. Additionally, a sealing cap is provided to protect the connector when not connected, ensuring continuous protection against water and marine elements.

This extension cord holds several key certifications, including compliance with ABYC, NMMA, and U.S. Coast Guard standards. It is also CE-certified, ensuring compliance with European safety requirements.

Yes, the Marinco 15M32AXP extension cord is specifically designed and certified for marine use. Its compliance with ABYC, NMMA, Coast Guard, and CE standards confirms its reliability and safety in a maritime environment.

The Marinco 15M32AXP watertight deck extension lead is designed for broad compatibility with marine electrical installations. It is equipped with the following connectors:

On the boat side, it features watertight Marinco female connectors certified to IP56, ensuring a secure and marine-condition-resistant connection. On the shore or power source side, it includes a European mains plug (European Main Site Plug). It also comes with a set of 32A 230V locking cords. Additionally, it is supplied with molded NEMA SS-1 connectors and an IEC 60309 2P+E [6H] 250V/50Hz socket. These components provide a 230V, 32-amp power supply and adaptability to various shore power systems.
