Mast mount for 1 Alpha 9" Performance instrument – Landscape format

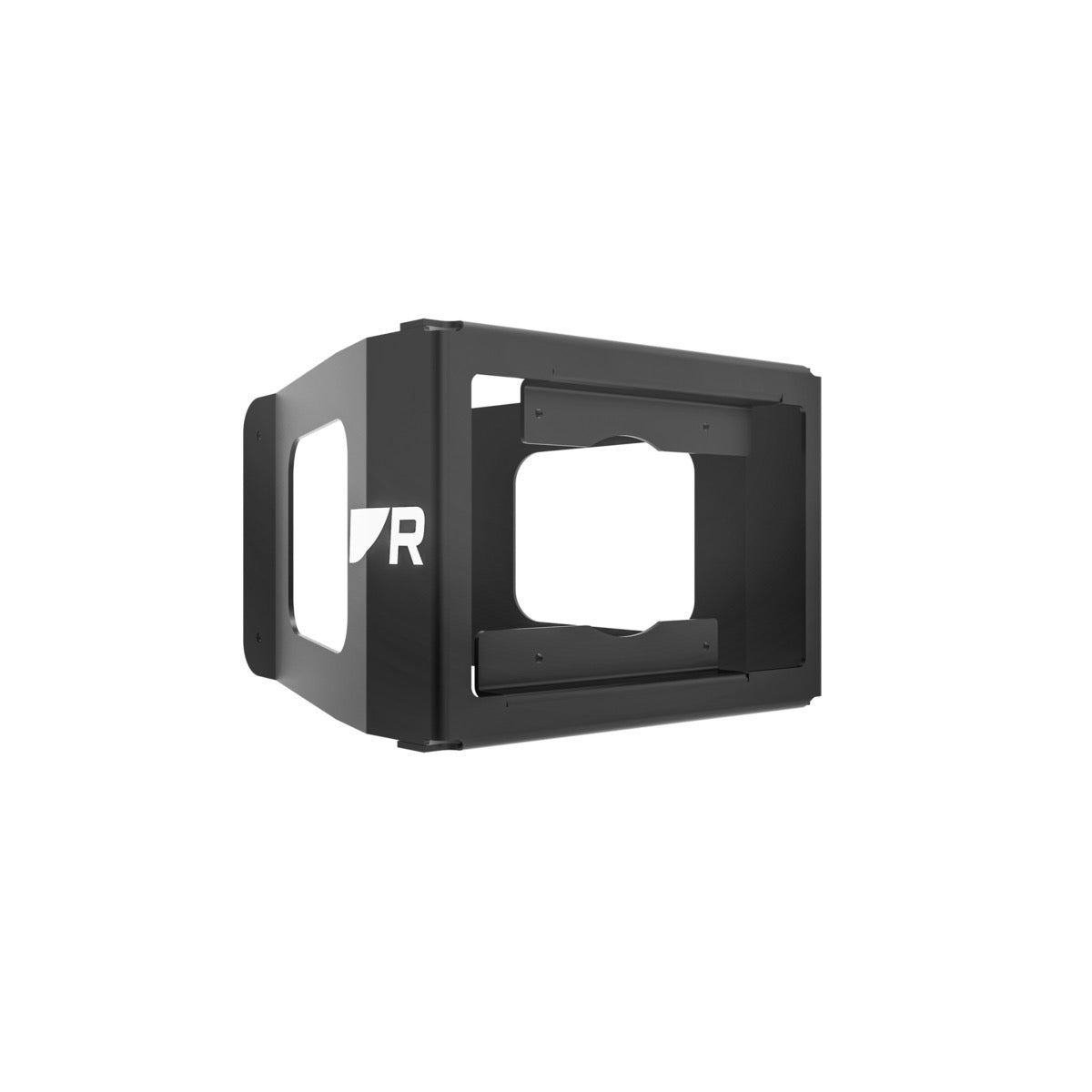

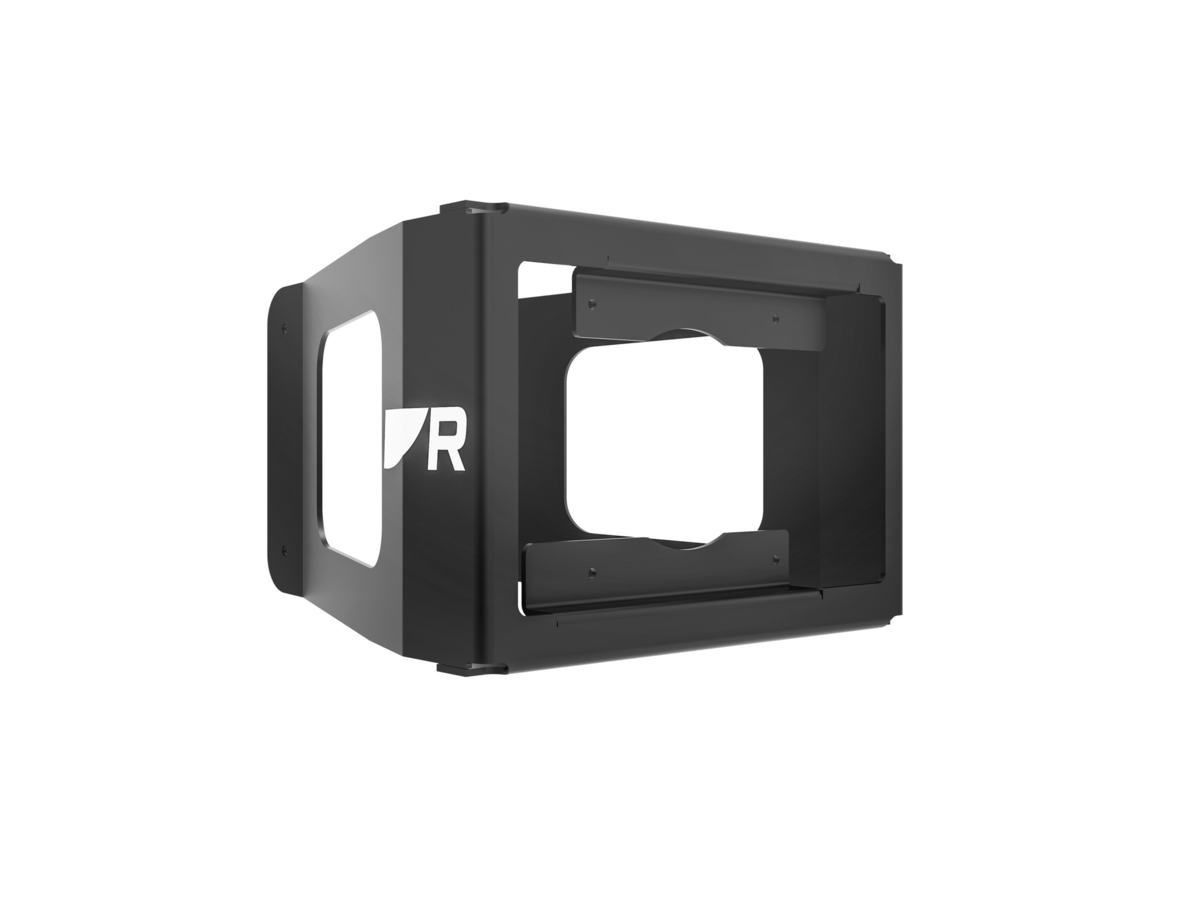

The Raymarine mast mount A80714 is specifically designed for the Raymarine Alpha 9" performance instrument in landscape format.

The dimensions of the mast bracket A80714 are as follows:

Width: 266 mmHeight: 185 mmDepth: 145 mm

The A80714 mast mount is compatible with masts ranging from 120 mm (4.72 in) to 210 mm (8.27 in) in diameter.

With the A80714 mast mount, the following items are included:

Alpha Series mast mount (9" landscape)Documentation pack2 P-clips for securing cables to the mast4 M4x14 hex-head screws to attach the Alpha Series display to the mount4 M4x9 flat washers for attaching the Alpha Series display to the mount2 M5x16 hex-head screws to connect the mount to another Alpha Series mast mount2 M5x10 flat washers to connect the mount to another Alpha Series mast mount

No, the A80714 mount is specifically designed for mounting an Alpha 9" instrument in landscape orientation only.

The Alpha 9" instrument is mounted to the A80714 bracket using 4 M4x14 hex-head screws and 4 M4x9 flat washers, which are supplied with the bracket.

Yes, Alpha Series mast mounts of the same size and orientation, such as the A80714, can be connected together to form an extended array of mast-mounted performance displays. This modularity is made possible by hexagonal nuts located at the top of each mount.

No, the A80714 mount is designed for exclusive compatibility with Raymarine's Alpha series instruments, specifically the Alpha 9" Performance.

The A80714 mount is designed to simplify cable management along the mast. P-clips are provided to help secure and organize cables, contributing to a clean and tidy installation.

Yes, as a Raymarine product designed for marine equipment, the A80714 mount is built to withstand marine environmental conditions.

No, the A80714 mount is specifically designed for the Alpha 9 instrument. For the Alpha 7, other mounts are available, such as the A80711 for landscape format.

To connect the A80714 mount to another Alpha Series mast mount, use 2 M5x16 hex-head screws and 2 M5x10 flat washers, which are included.

The A80714 mount is designed to be secured to masts using a clamping system compatible with specified diameters (120 mm to 210 mm), without requiring drilling of the mast itself for primary attachment.

Yes, the A80714 mount is an alternative to competing solutions, offering exclusive compatibility with Raymarine's Alpha instrument range.

The P-clips supplied with the A80714 mount are used to secure cables along the mast, ensuring tidy and secure installation.

Raymarine strongly recommends installation by a Raymarine-certified installer for all its products. Certified installation may also qualify for enhanced warranty benefits.

The A80714 mount is a single mount designed to hold one Alpha 9" instrument in landscape orientation. There is also a double mount, the A80715, for two Alpha 9" instruments in landscape orientation.

The modular connection between multiple Alpha mounts of the same size and orientation is made using M5 bolts and washers supplied, secured by hex nuts located at the top of each mount.

The A80714 mount is specified for masts with a diameter range of 120 mm to 210 mm. While the documentation does not explicitly state compatibility with non-circular masts, the diameter specification suggests a design optimized for round-section masts.

Installation involves securing the mount around the mast while respecting compatible diameters. The Alpha 9" instrument is then mounted on the bracket using the supplied screws and washers. Finally, the cables are routed and secured along the mast using P-clips.
