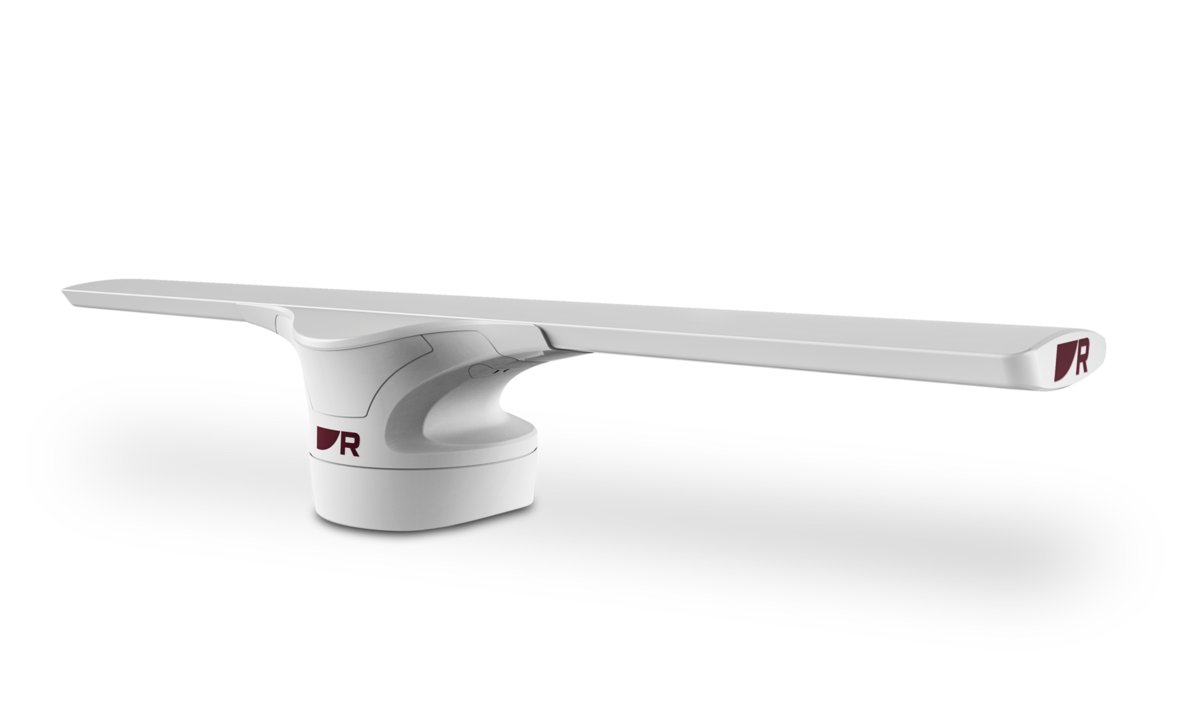

Cyclone 55W Radar with 6' open array antenna and 15m RayNet radar cable

The Raymarine Cyclone radar delivers a transmit power of 55 watts. This high power is designed for long-range maritime detection and precise target recognition, outperforming lower-power dome models.

The system is supplied with a 6-foot (approximately 1.83-meter) slotted waveguide antenna. This antenna size improves angular resolution, providing a more detailed radar image.

The Raymarine Cyclone radar integrates Doppler technology. This feature enables rapid and intuitive identification of moving targets by distinguishing those approaching from those moving away.

The Cyclone radar's 6-foot radome antenna significantly improves angular resolution. This results in a sharper and more detailed radar image, which is essential for navigation in congested areas or low visibility, allowing better target separation.

Yes, the VCM100 voltage converter module is included with the Raymarine Cyclone 55 Watts radar system. It is required for the radar system's electrical power supply.

Yes, the Raymarine Cyclone 55 Watts is designed for consistent performance even in harsh weather conditions. Its power and slotted-waveguide antenna allow it to maintain reliable detection where lower-power radars may be less effective.

The Doppler technology integrated into the Cyclone radar enables rapid and intuitive identification of moving targets. It uses a color code to indicate whether a target is approaching (red) or moving away (green), thereby improving situational awareness and safety at sea.

The Raymarine Cyclone 55 Watts is an open array radar (beam antenna). Unlike dome radars, open array systems generally provide better resolution and extended range, particularly with a 6-foot antenna.

The Raymarine Cyclone radar is compatible with Raymarine LightHouse multifunction displays. It ensures seamless integration and access to all advanced radar features, including ARPA target acquisition.

The Cyclone radar uses a RayNet cable for its network connection. This cable ensures fast and reliable communication between the radar and compatible multifunction displays.

Yes, a 15-metre RayNet cable is included with the Raymarine Cyclone 55 W radar kit, enabling full installation and immediate network connectivity.

To fully utilize ARPA (Automatic Radar Plotting Aid) target acquisition features with the Cyclone radar, your system requires a heading and speed data source. This information is essential for accurate target trajectory calculations.

The Cyclone radar scanner should be mounted in a high and unobstructed position, ideally above any major obstructions on the boat. The goal is to ensure a 360-degree field of view without interference for optimal detection.

Yes, it is imperative to maintain the compass safety distance specified in the installation manual. The radar generates magnetic fields that can affect compass accuracy if mounted too close.

Yes, the VCM100 module must be installed in a dry, protected location, sheltered from weather and water spray. It is recommended to mount it near the power source and radar, following wiring guidelines.

Yes, an inline fuse is required for the Cyclone radar and VCM100 module electrical installation. The exact fuse rating specifications are detailed in the installation manual to ensure circuit protection.

The Cyclone radar cable can be routed via two main options:

Rear exit: The cable exits directly from the rear of the radar base.Through-hull wiring: The cable passes through the mounting surface directly beneath the base.The choice depends on your installation setup.

Yes, the VCM100 module, which powers the radar, has specific grounding requirements. It is essential to follow the manual instructions to ensure proper grounding for safety and system performance.

After installation, several initial checks are recommended:

A power-on test to ensure the radar powers up correctly. Opening the radar application on your multifunction display. Checking and adjusting the alignment of the lubber line to ensure the radar display accuracy relative to the vessel's axis.

To register the warranty for your Raymarine Cyclone radar, you must visit the official Raymarine website. Registration ensures your product is covered in accordance with the manufacturer's warranty policy.
