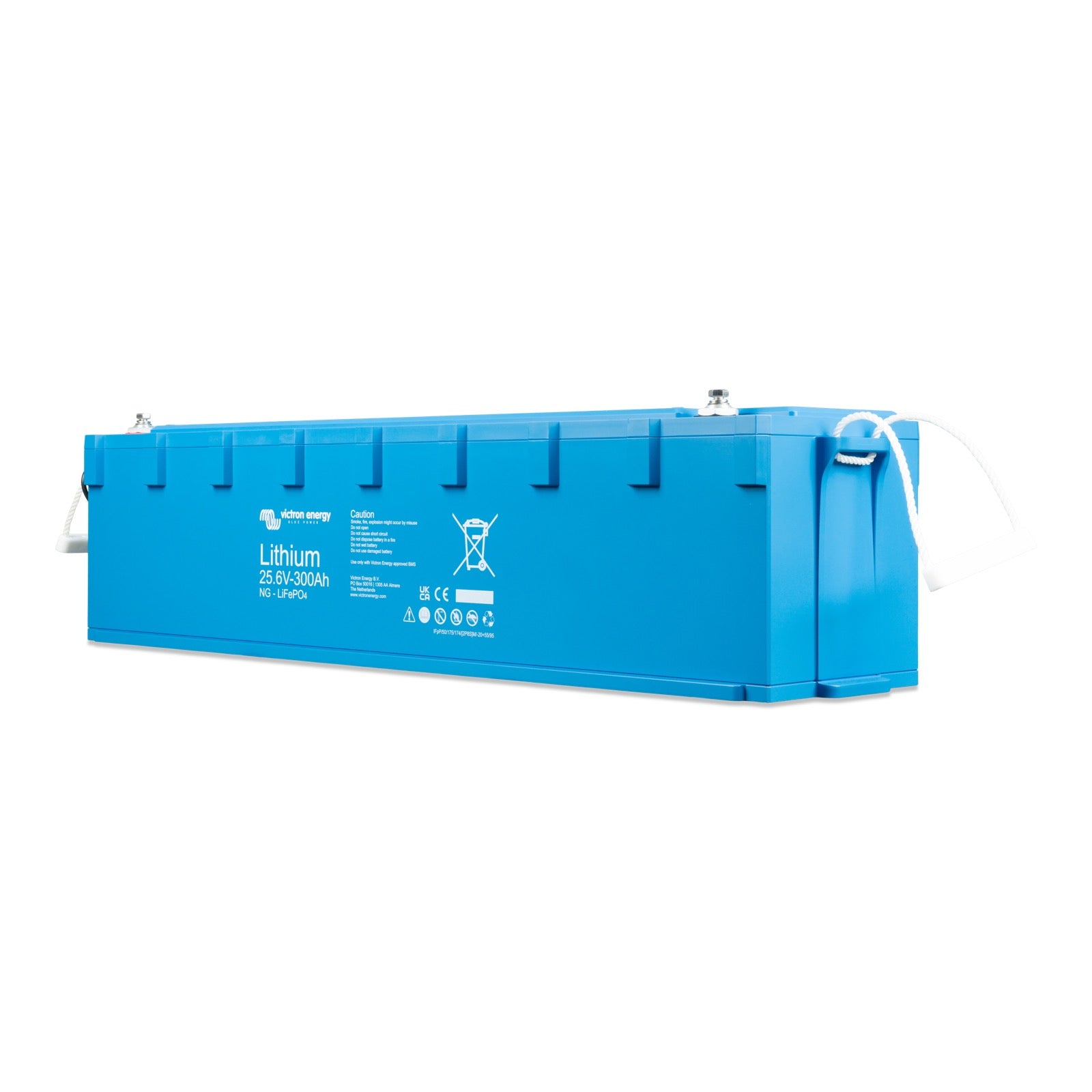

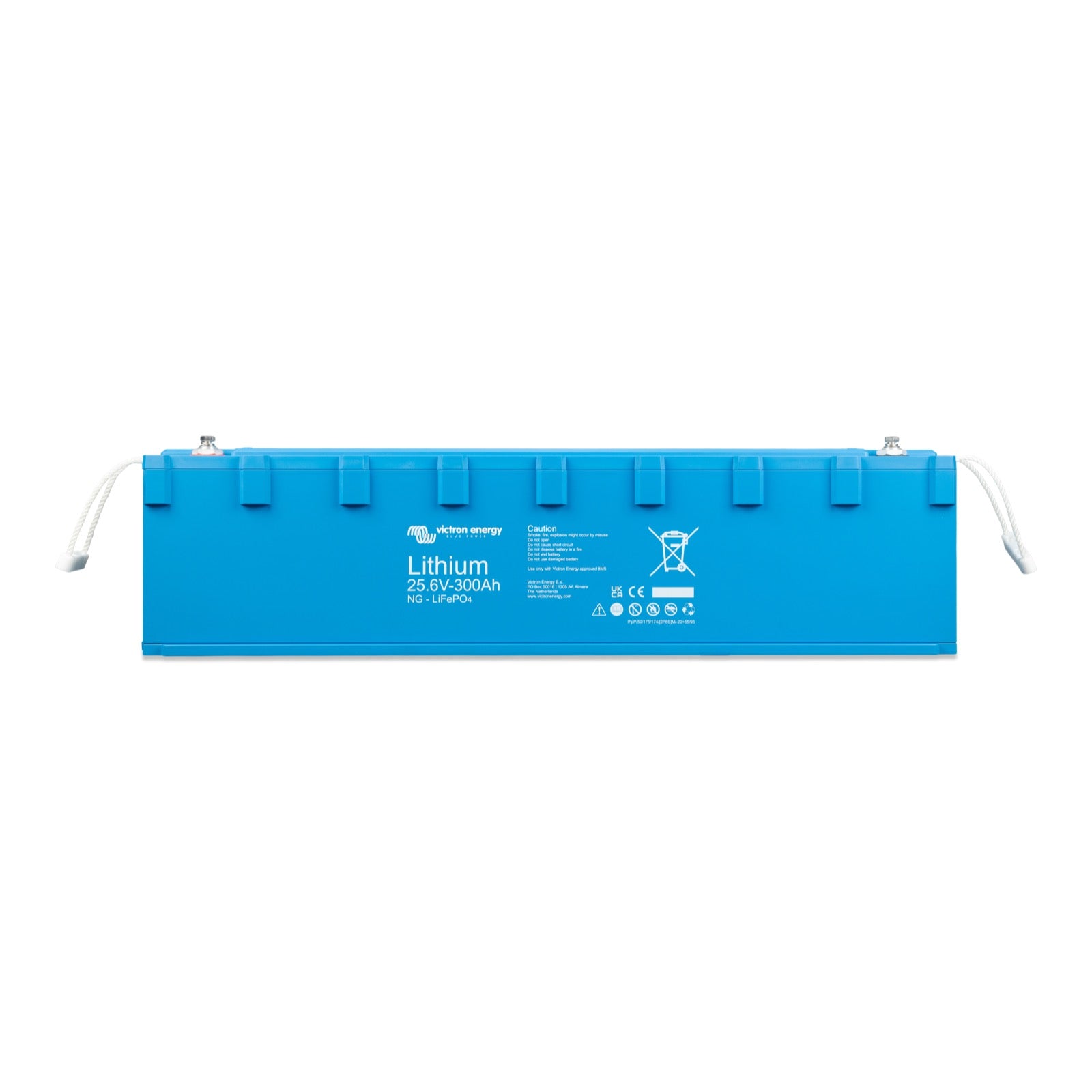

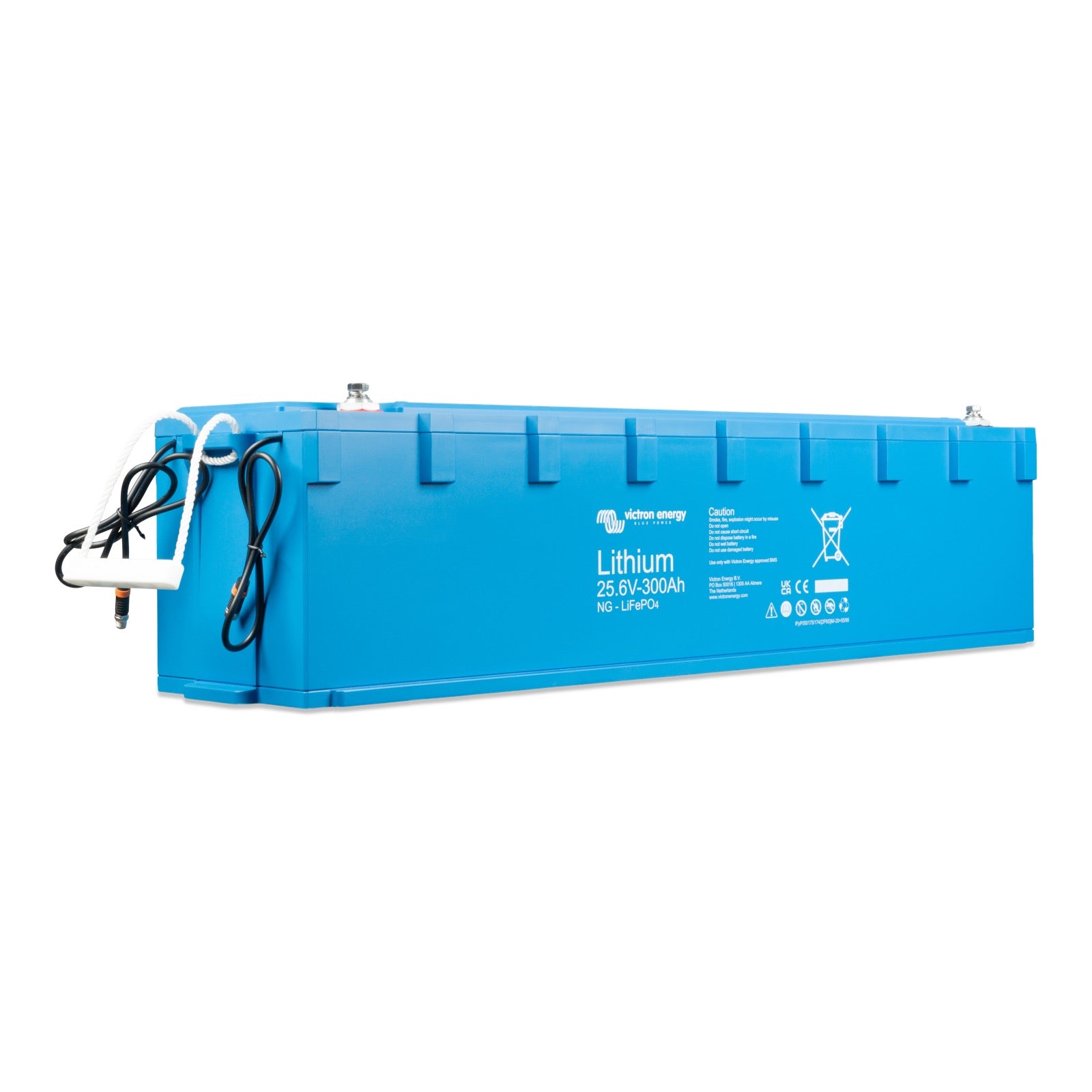

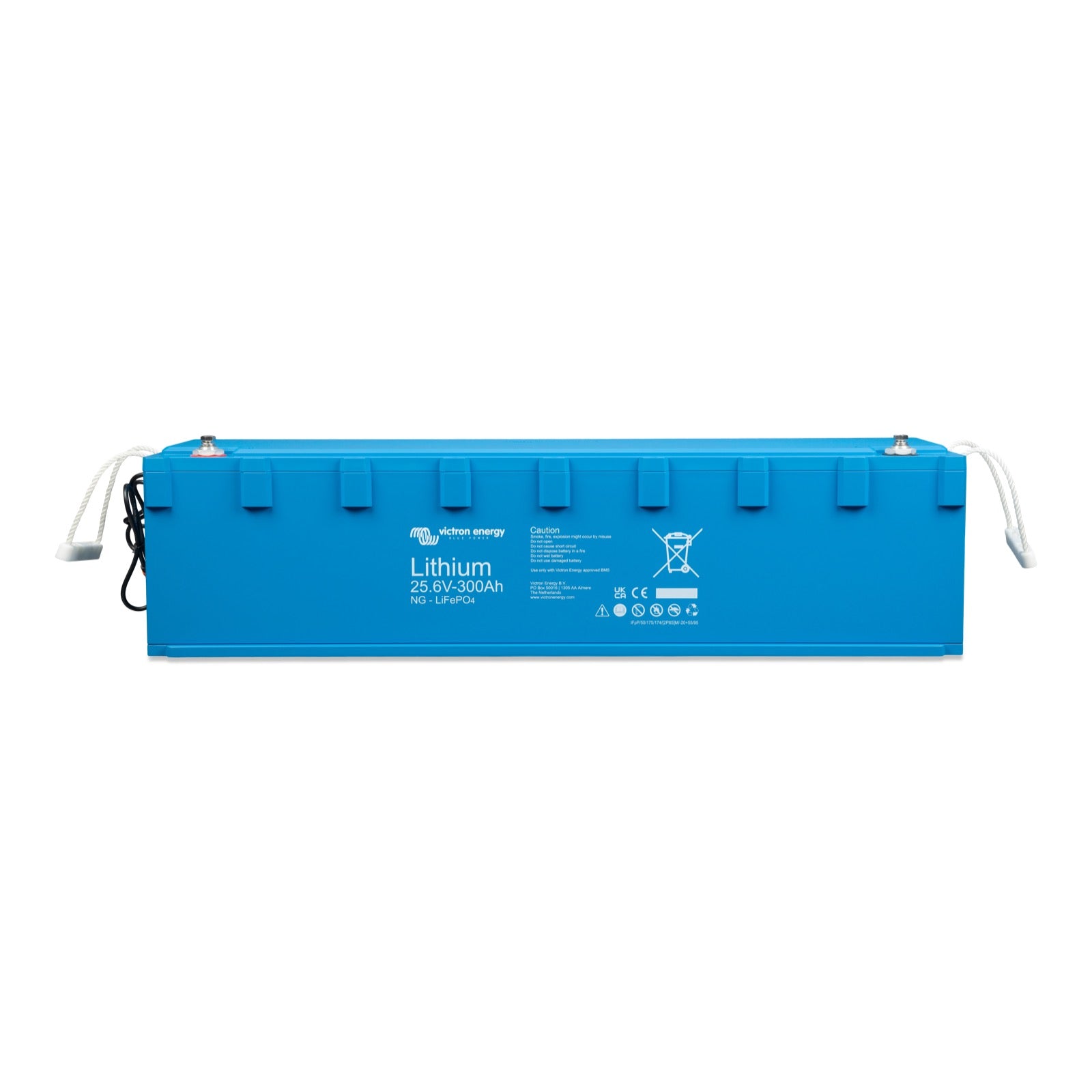

25.6V/300Ah NG Battery
25.6V/300Ah NG Battery
In stock
Technical specifications
Technical specifications
| Battery technology | Lithium Fer Phosphate (LiFePO₄) |
| Nominal voltage | 25.6 |
| Capacity | 300.0 |
| Energy | 7680.0 |
| Mobile app compatibility | Oui |
| Max charge current (A) | 300.0 |
| Recommended charge current | 300.0 |
| Max discharge current (A) | 300.0 |
| Peak discharge current | 600.0 |
| Discharge cut-off voltage | 22.4 |
| Bulk/absorption charge voltage | 28.8 |
| Float charge voltage | 27.0 |
| Depth of discharge (DoD) | 80.0 |
| Cycle life | 2500.0 |
| Max batteries in series | 2.0 |
| Max batteries in parallel | 50 |
| Terminal size | M8 |
| Mounting orientation | Verticale ou sur le côté |
| Temperature range (charge) | +5 °C à +50 °C |
| Temperature range (discharge) | -20 °C à +50 °C |
| Storage temperature range | -45 °C à +70 °C |
| IP rating | IP65 |
| Dimensions (W x H x D) | 841 x 206 x 205 mm |
| Weight | 52.0 |
| Certifications | UL1973, UL9540A, IEC62619 (en cours), UL2054 |
| Low temperature protection | Oui, via BMS externe (arrêt de la charge en dessous de +5 °C) |
| Automatic System Voltage Detection | Oui |
| Battery Bank Configuration Support | Simple,Série,Parallèle,Série/Parallèle |
| Battery Internal Resistance Mohm | 1 |
| Integrated battery monitoring | Oui |
| Bms External Required | Oui |
| Bms Interface Type | Connecteur circulaire M8 |
| Bms Model Recommended | Lynx Smart BMS NG 500 A / 1000 A |
| Cell Balancing Integrated | Oui |
| Cell Monitoring Integrated | Oui |
| Cell Overvoltage Stop Charge V | 3.6 |
| Cell Undervoltage Disconnect V | 2.8 |
| Cell Undervoltage Pre Alarm V | 3.0 |
| Cycle Life 70 Dod | 3000 |
| Initial Charge Required | Oui |
| Shunt intégré | Oui |
| Lifting Handles Location | Sur le corps de la batterie |
| Max Continuous Charge C Rate | 1C |
| Max Continuous Discharge C Rate | 1C |
| Max Pulse Charge C Rate | 1.5C |
| Max Pulse Discharge C Rate | 2C |
| Max System Energy Kwh 24v | 384 |
| Operating temperature range | -20 °C à +50 °C |
| Recommended continuous discharge current | 300.0 |
Detailed description
Detailed description
Designed for demanding marine energy systems, the Victron Energy lithium iron phosphate (LiFePO₄) 25.6V/300Ah NG Battery provides a 7680 Wh energy storage solution for 24 V installations. This next-generation battery integrates a shunt for precise data transmission (voltage, current, temperature) to the battery management system (BMS), ensuring real-time monitoring of charge state and specific alerts.
System integration and performance
The Victron Energy 25.6V/300Ah NG Battery is designed for seamless integration within the Victron ecosystem. It requires the use of a Lynx Smart NG BMS (500 A or 1000 A, sold separately), which automatically detects system voltage and the number of connected batteries. The BMS manages cell balancing and critical protections: pre-alarm at 3.0 V/cell, load disconnection at 2.8 V/cell, and charge cutoff at 3.6 V/cell or in case of abnormal temperature (outside +5 °C to +50 °C for charging, -20 °C to +50 °C for discharging).
Modularity and reliability
The Lithium NG range allows for modular battery banks, with the possibility of connecting up to 50 batteries in parallel for 24 V systems, offering a maximum energy capacity of 384 kWh per BMS. The 25.6V/300Ah NG Battery delivers a lifespan of 2500 cycles at 80 % depth of discharge (DoD) and up to 5000 cycles at 50 % DoD. It supports a maximum continuous discharge and charge current of 300 A (1C), with a maximum pulse discharge current of 600 A (2C) and charge current of 450 A (1.5C) for 10 seconds. Its internal resistance is 1 mΩ.
Robust design and simplified maintenance
With an IP65 protection rating, Lithium NG batteries are effectively protected against dust and low-pressure water jets, making them suitable for marine environments. The self-discharge rate is reduced to ≤ 2 % per month, contributing to longevity and reliability. Installation is simplified with included brackets, allowing secure mounting against sliding and tipping.
