Victron Energy

BPC120713016

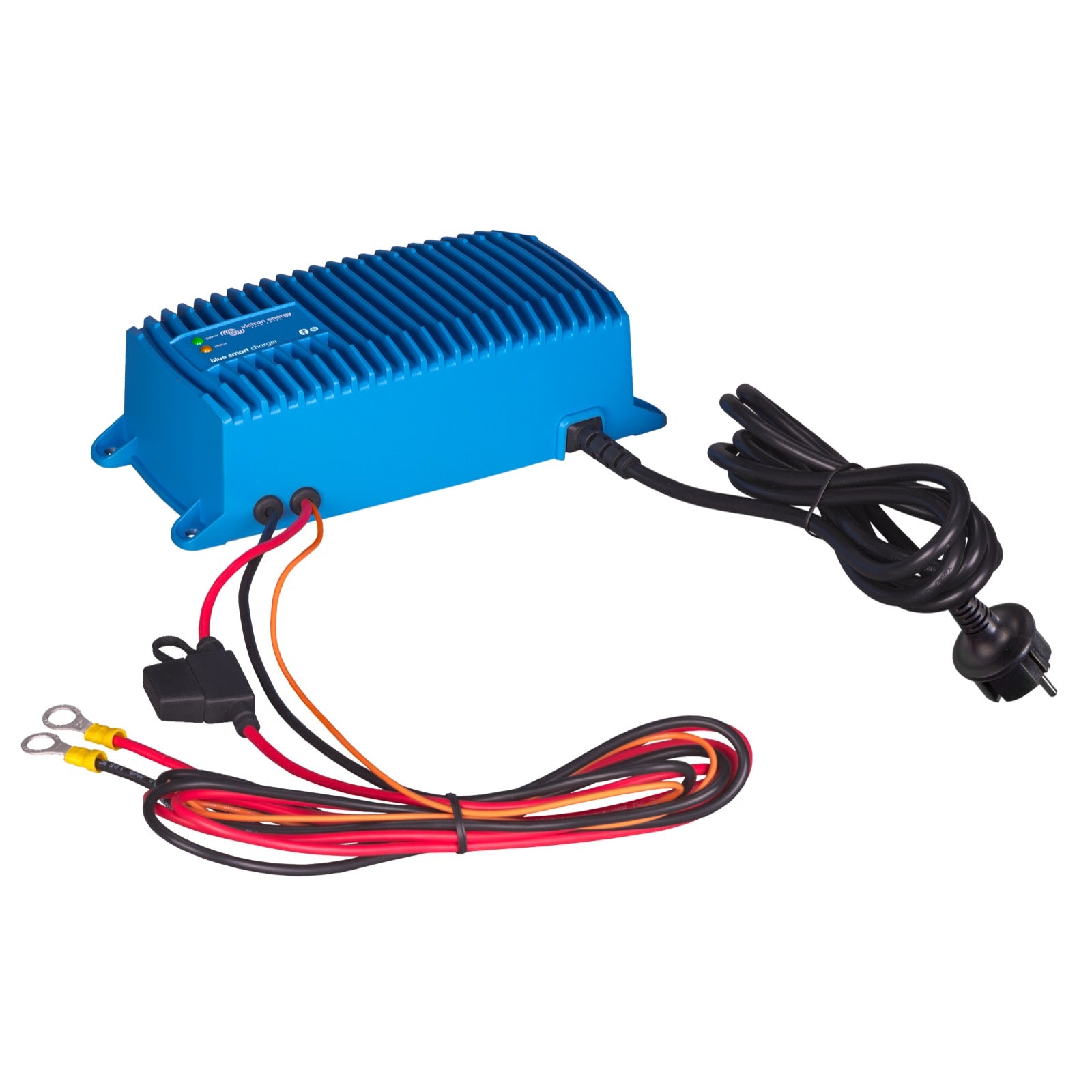

Blue Smart IP67 Charger 12/7 DC

Name: Blue Smart IP67 Charger 12/7 DC
Brand: Victron Energy
SKU: BPC120713016
Price: 120.00 EUR
Availability: InStock

Le Victron Energy Blue Smart IP67 Charger 12/7 est un chargeur de batterie robuste et étanche (IP67), idéal pour les environnements marins. Avec 93% d'efficacité et un algorithme de charge adaptatif à 5 étapes, il assure une gestion optimisée des batteries plomb-acide et Li-ion, même déchargées à zéro volt. Ce modèle de 7 A offre une surveillance et un contrôle via Bluetooth, et est fourni avec ses câbles de connexion batterie et secteur de 1,5 mètre.

Retail priceBenefit from the professional rate

120,00€

Tax included. Shipping calculated at checkout.

In stock

Free shipping over €300 in the EU
Free returns within 30 days

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of approved installers

Find an installer

Support service

Opt for additional installation assistance

Technical specifications

Ac Plug Type	CEE 7/7
Battery Equalize Frequency	Hebdomadaire
Battery Recovery Zero Volt Support	Oui
Casing Material Composition	Aluminium moulé, résine
Noms des étapes de l'algorithme de charge	bulk,absorption,recondition,float,storage
Efficiency Min Percent	92
Méthode d'encapsulation électronique	Résine moulée
Green Led Status Indication	Alimentation activée
Housing material	Aluminium moulé
Protection anti-déflagrante	Oui
Low Charge Current	2
Puissance consommée à vide	0.5
Oil resistance	Oui
Power Consumption Full Charge W	1
Shock and vibration resistance	Oui
Status Led Colors	Jaune,Vert
Storage Mode Activation Condition	Pas de décharge pendant 24 heures
Tension de stockage (mode Normal)	13.2
Wireless connectivity	Bluetooth
Yellow Led Status Indication	Charge rapide (clignotement rapide), Absorption (clignotement lent), Float (fixe), Stockage (éteint)

Detailed description

The Victron Energy Blue Smart IP67 Charger 12/7 DC is a robust and connected charging solution designed for marine and demanding environments. It stands out with its IP67 protection rating, ensuring complete water, oil, and dust resistance. Its die-cast aluminum housing and electronics encapsulated in resin make it shock-resistant and protected against ignition.

Efficiency and adaptive battery management

With 93% efficiency, this charger minimizes heat loss, consuming less than 1 Watt once the battery is full. It features a microprocessor-managed 5-stage adaptive charging algorithm (bulk – absorption – recondition – float – storage) that optimizes the charging process based on battery usage. The storage mode reduces voltage to 13.2 V for a 12 V battery to limit gassing and corrosion, with weekly equalization at absorption voltage to prevent stratification and sulfation.

Bluetooth connectivity and advanced features

The integrated Bluetooth Smart functionality allows monitoring of voltage and current, parameter adjustments, and firmware updates via the VictronConnect app from a smartphone or tablet. The Blue Smart IP67 Charger 12/7 can also charge Li-ion batteries with a simplified algorithm (bulk – absorption – float). It includes a recovery function for fully discharged batteries, even at zero volts, and reconnects Li-ion batteries with an internal disconnect function. Its overheat protection allows operation up to 60 °C, with output current reduction to preserve the charger without failure.

Positioning in the range and technical specifications

The 12/7 model delivers a 7 A charging current, positioning itself as a versatile option for battery capacities suited to a 7 A current. Compared to higher models in the Blue Smart IP67 range (12/13, 12/17, 12/25 for 12 V systems), it is more compact and suited to moderate charging needs while retaining the same robustness and intelligent charging benefits. It comes with 1.5-meter battery cables (black and red) and a 1.5-meter power cable with a CEE 7/7 plug, all housed in a blue aluminum case (RAL 5012) measuring 85 x 211 x 60 mm and weighing 1.8 kg.

Documentation

Type	Nom
	EN - Fiche technique - Blue Smart IP67 Charger 12/7 (1)
	FR - Manuel utilisateur - Blue Smart IP67 Charger 12/7 (1)

Payment and security

Your payment information and data are processed securely.

Blue Smart IP67 Charger 12/7 DC

120,00€

Frequently Asked Questions

Need help? Contact us

What is the design feature of the Victron Blue Smart IP67 charger?

The Victron Blue Smart IP67 charger is designed to be extremely rugged and durable. Its housing is made of die-cast aluminum, and its electronics are fully encapsulated in resin. This design provides complete protection against water, oil, dust (IP67 rating), shocks, and makes it flame-retardant.

What is the energy efficiency of the Blue Smart IP67 12/7 charger?

The Blue Smart IP67 12/7 charger stands out with a high energy efficiency of 93 %. Thanks to this high efficiency, it minimizes heat losses. Additionally, once the battery is fully charged, its power consumption drops to less than 1 Watt, which is highly efficient.

How does the charger handle overheating?

Le chargeur est protégé contre la surchauffe et peut être utilisé dans des environnements chauds, comme une salle des machines. Le courant de sortie sera automatiquement réduit à mesure que la température augmente au-delà de 40 °C (avec une réduction de 3 % par °C au-dessus de 40 °C), mais le chargeur ne tombera pas en panne et continuera de fonctionner.

Is the Victron Blue Smart IP67 12/7 charger silent?

Yes, the Victron Blue Smart IP67 12/7 charger is completely silent. It has no cooling fan or other moving parts, ensuring noise-free operation.

What are the dimensions and weight of the Blue Smart IP67 12/7 charger?

The dimensions of the Blue Smart IP67 12/7 charger are 85 mm (height) x 211 mm (width) x 60 mm (depth). Its weight is 1.8 kg.

What safety protections does the charger include?

The charger includes multiple safety protections for safe operation:

Protection against battery polarity reversal (via an external ATO fuse). Protection against output short circuits. Protection against overheating.

How can I check the charge status of my battery with this charger?

The charger has two LEDs to indicate its operating status and charging cycle:

A yellow LED that indicates the charging cycle: fast blinking for bulk charging, slow blinking for absorption, solid for float mode, and off for storage mode. A green LED that indicates the device is powered on.

Can the charger also be used as a power supply?

Yes, the Blue Smart IP67 12/7 charger can also be used as a power supply, providing additional versatility.

Does the charger compensate for ambient temperature during charging?

Yes, the Blue Smart IP67 charger includes temperature compensation. It measures ambient temperature during the test phase and adjusts the optimal charging voltage for lead-acid batteries based on this temperature. This eliminates the need for manual adjustments in cold or hot environments, ensuring optimal charging.

What types of batteries can the Blue Smart IP67 12/7 charger charge?

The Blue Smart IP67 12/7 charger is designed to efficiently charge lead-acid batteries (including gel, AGM, and flooded types) and Li-ion batteries.

What is the recommended battery capacity range for this charger?

The charger is suitable for lead-acid and Li-ion batteries with a capacity between 14 Ah and 225 Ah.

Can the charger recharge a fully discharged battery?

Yes, the Blue Smart IP67 12/7 charger features a recovery function for fully discharged batteries. It will attempt to recharge a battery even if it has been discharged to zero volts, using a low current initially, then resuming normal charging once sufficient voltage is detected.

Is it possible to charge Li-ion batteries with this charger?

Yes, the charger can charge Li-ion batteries. It uses a simplified charging algorithm specifically adapted for Li-ion batteries (bulk – absorption – float).

How does the Bluetooth Smart connectivity work with this charger?

The integrated Bluetooth Smart feature allows you to connect the charger to your smartphone, tablet, or other device via the VictronConnect app. You can monitor voltage and current, adjust charge settings, and wirelessly update the charger's firmware.

On which platforms is the VictronConnect application available?

The VictronConnect application is available for Windows PC and macOS users, as well as for iOS and Android smartphones and tablets, enabling flexible management of the charger.

Where should I install the charger?

The charger must be installed in a well-ventilated area, near the battery. It is important not to place it directly above the battery due to potential corrosive gases that may be emitted by the battery and damage the charger.

How to connect the charger to the battery?

Pour connecter le chargeur à la batterie, suivez ces étapes :

Connectez le câble moins (noir) à la borne négative (–) de la batterie.Connectez le câble plus (rouge) à la borne positive (+) de la batterie.Assurez-vous que les bornes à anneau sont correctement fixées.Ces connexions doivent être effectuées uniquement après avoir débranché le cordon d'alimentation CA de la prise électrique.

What are the AC power supply requirements for the charger?

The charger operates with an input voltage range of 180 to 265 VAC and a frequency of 45 to 65 Hz. The nominal supply voltage is 220-240 VAC 50-60 Hz.

Can I use the charger in a humid environment?

Yes, the Blue Smart IP67 charger is designed to operate in highly humid environments, with humidity up to 100%. Its IP67 rating ensures full water and dust resistance.

How to start the charging cycle after installation?

Once you have correctly connected the DC cables to the battery (black wire to the negative terminal, red wire to the positive terminal), plug the AC power cord into the wall outlet. The charging cycle will start automatically.
