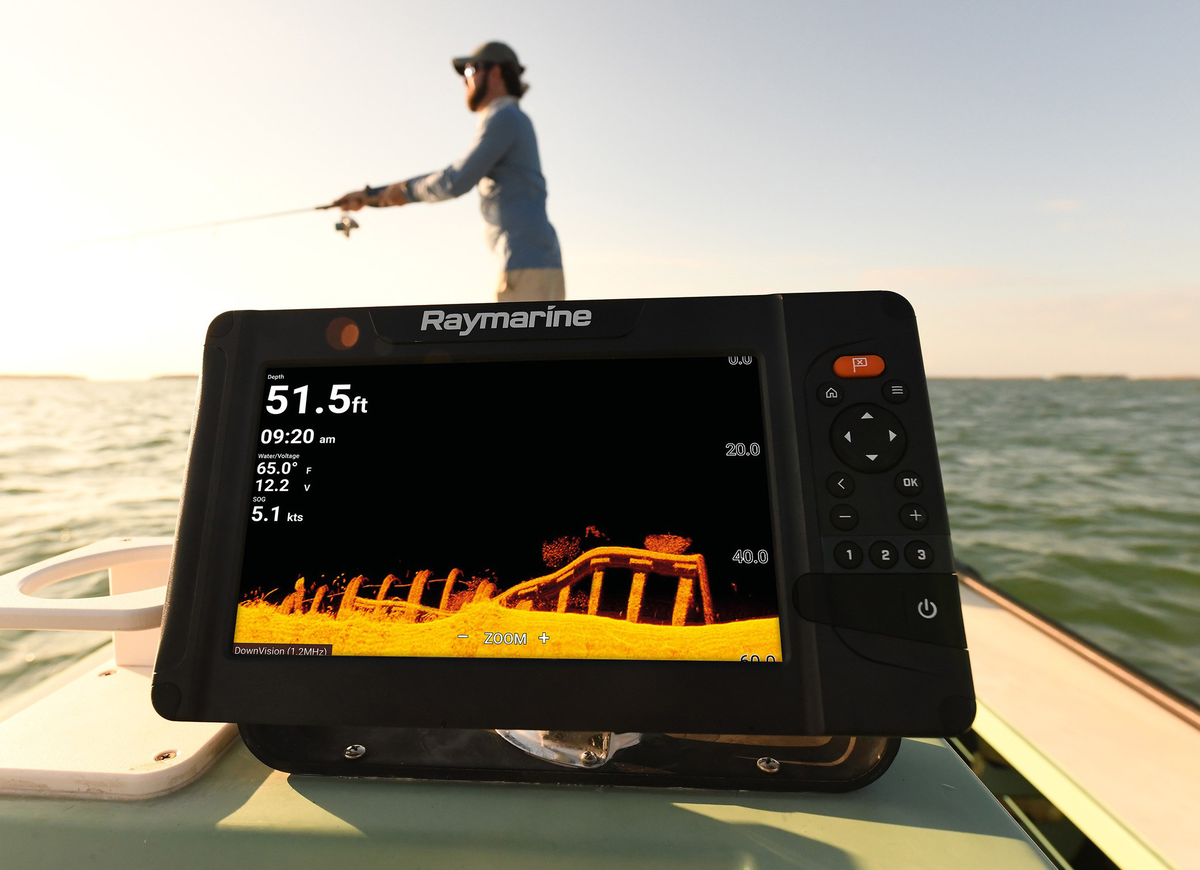

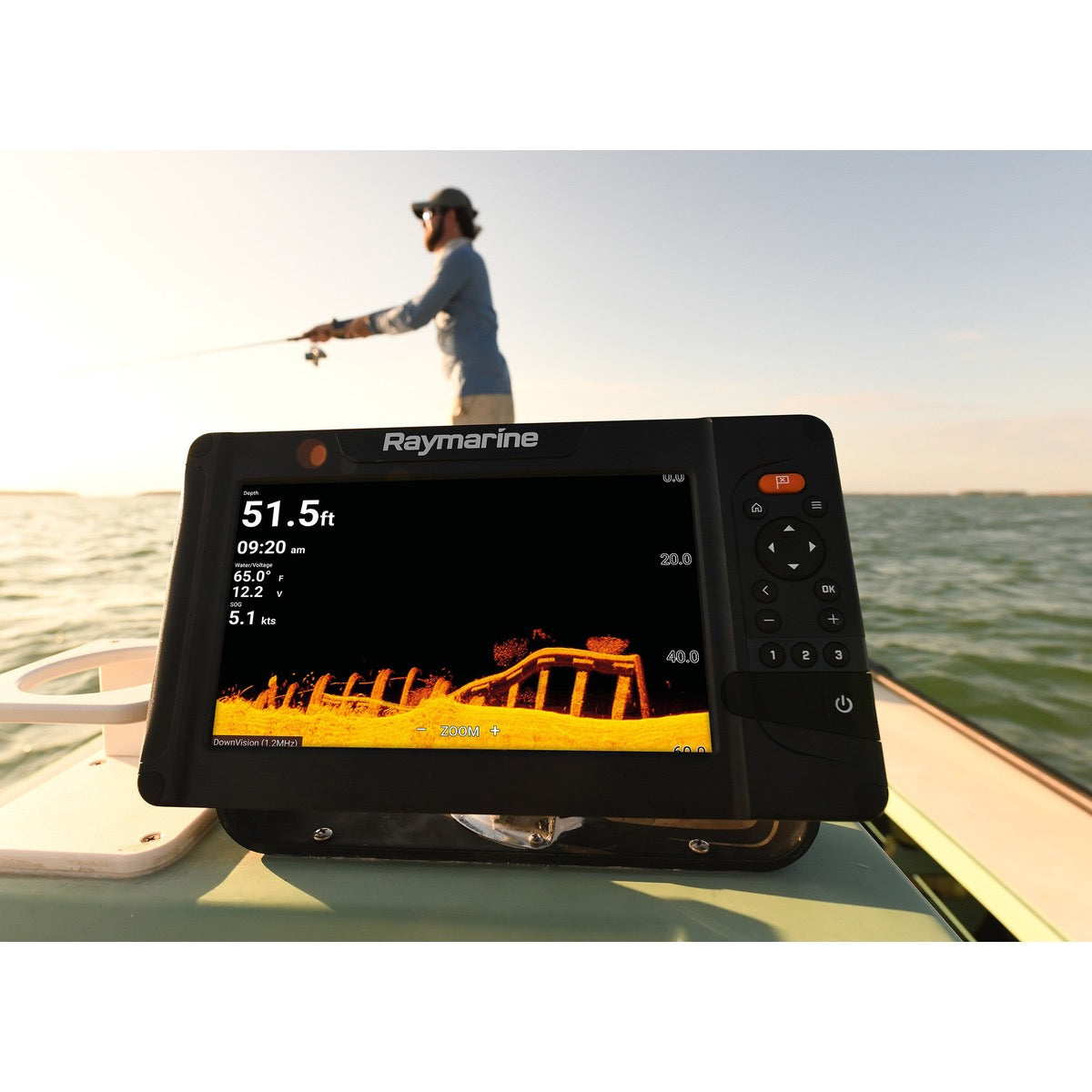

Element 12 HV – GPS 12", ekran Wi-Fi, sonder CHIRP i HyperVision, sonda HV-100+, bez mapy

The HyperVision sounder technology, integrated into the Raymarine Element 12 HV, uses very high frequencies (1.2 MHz). This delivers underwater imaging with exceptional resolution, providing detailed views of structures and fish. It is particularly effective for DownVision and SideVision views down to a depth of about 30 meters. Beyond this depth, the traditional CHIRP sounder takes over for effective detection in deeper waters.

No, the Raymarine Element 12 HV is supplied without mapping. For navigation, you will need to purchase compatible marine charts separately. It is compatible with Navionics or C-MAP charts, which you can install as required.

The Raymarine Element 12 HV stands out from touchscreen models like the Axiom series with its simplified user interface based on button controls. This design is intended for intuitive and direct use, particularly suited to users seeking a robust solution dedicated to high-resolution underwater detection without a touchscreen.

The Element 12 HV’s built-in Wi-Fi connectivity enables several essential functions:

Software updates for the device can be performed easily. It allows integration with mobile apps, providing flexibility for route planning or displaying screen data on other compatible devices.

The HyperVision technology provides high-resolution underwater imaging, particularly for DownVision and SideVision views, down to a depth of approximately 30 meters. For greater depths, the conventional CHIRP fishfinder takes over to ensure continuous and effective detection of the seabed and fish.

The Element 12 HV comes with the HV-100+ transducer. This is a transducer designed for transom mounting on your boat, enabling full use of the CHIRP and HyperVision sounder's advanced features.

When applying antifouling to the HV-100+ transducer, it is essential to follow these recommendations:

Use only water-based antifouling paint.NEVER use ketone-based or copper-based antifouling paint, as this could damage the transducer and void the product warranty.Ensure the transducer is cleaned according to the instructions before any new antifouling application.

To ensure the Element 12 HV mounting template is printed at the correct scale, follow these steps using Adobe Acrobat Reader:

Open the mounting template document in Acrobat Reader. Select File → Properties and note the page format. Select File → Print. In the print dialog, select Properties and ensure the paper format matches the dimensions noted in step 2. Return to the print dialog and ensure the "Page Size Options" and "Scaling" (if applicable) are set to "Actual Size" or "None". Verify that the "Auto Rotate and Center Pages" or "Auto Portrait/Landscape" (if applicable) option is NOT checked. Select the appropriate orientation (portrait or landscape) to match the template's orientation.
