Plaça d'adaptació AXIOM 9 per a tall C80/E80

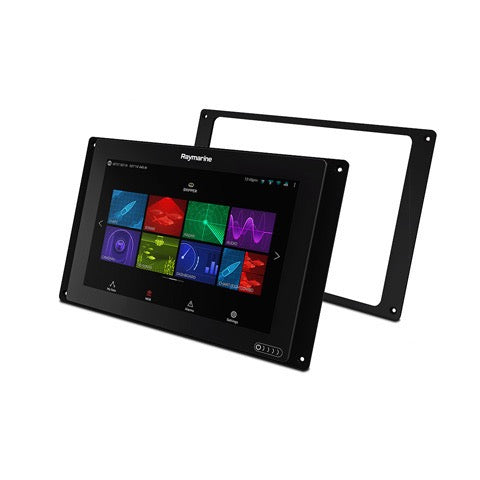

The Raymarine A80564 mounting plate is an accessory designed to simplify the upgrading of navigation systems. It allows installation of an Axiom 9 multifunction display (MFD) into an existing cutout.

The part number (SKU) for this mounting bracket is A80564.

The plate is made from a material specifically designed for marine environments, ensuring durability and resistance to maritime conditions.

The external dimensions of the mounting plate are 283.0 mm in width by 212.5 mm in height.

Yes, the A80564 adapter plate is specifically manufactured from a material suitable for marine environments, ensuring durable and aesthetic integration on your boat.

This mounting plate is specifically designed for installing the Raymarine Axiom 9 multifunction display.

It is specifically designed to fit existing cutouts for the older Raymarine C80 or E80 chartplotters.

No, the A80564 bracket is specifically sized for the Axiom 9 multifunction display installation and is not compatible with other Axiom models.

The A80564 panel is specifically designed for the cutouts of the C80 and E80 models. Its compatibility with other models in the C or E series is not indicated.

Installing the Axiom 9 with this mounting plate enables the LightHouse 4 software platform, which is used on Axiom MFDs.

The main advantage is the ability to install an Axiom 9 in an existing C80 or E80 cutout without requiring major structural modifications or costly carpentry work on the dashboard.

The internal cutout for the Axiom 9 display measures 231.0 mm in width by 145.0 mm in height.

No, this plate is designed to avoid costly and complex carpentry work, providing a direct transition and simplified installation of the Axiom 9.

Thanks to its specific design and precise dimensions, the A80564 panel ensures an exact fit and a professional finish, optimizing the installation of the Axiom 9 for reliable use at sea.

Yes, it is an essential component for owners looking to modernize their navigation equipment by upgrading to an Axiom 9, without compromising the integrity or appearance of their helm.

Yes, it is designed to simplify the upgrading of navigation systems by providing a technical solution that avoids major structural modifications, making the installation of the Axiom 9 easier.

Yes, made from a material suitable for the marine environment, it ensures durable and aesthetic integration while optimizing the installation of the Axiom 9 for reliable use at sea.

The internal cutout corners of the panel for the Axiom 9 have a radius of 9.0 mm (R9.0).

The outer corners of the mounting plate have a radius of 12.0 mm (R12.0).

By allowing installation of an Axiom 9, which runs the LightHouse 4 platform, the plate enables a direct transition to this modern operating system without modifying the existing dashboard cutout.
