CZone

80-911-0118-00

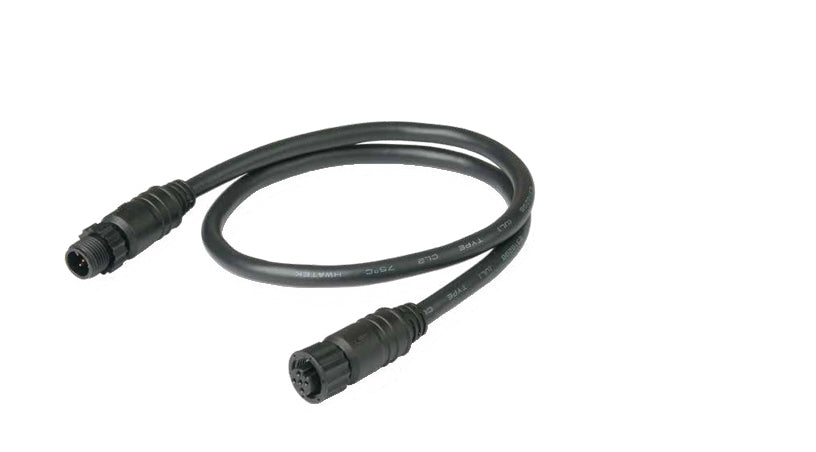

NMEA 2000 2 m T-connector cable

The CZONE 2-metre NMEA 2000 drop cable (80-911-0118-00) provides a reliable and compliant connection for your devices to the NMEA 2000 network. Featuring 22 AWG conductors for minimal voltage drop and gold-plated IP67 connectors, it ensures performance and durability in your marine installation. This cable is universally compatible and designed for easy installation with its color-coded wiring.

Retail priceBenefit from the professional rate

37,06€

37,06€ ~~46,62€~~

Tax included. Shipping calculated at checkout.

Low stock

Free pickup point shipping over €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of approved installers

Find an installer

Support service

Opt for additional installation assistance

Technical specifications

Cable length	2
Connector A type	NMEA 2000 male connector
Connector B type	NMEA 2000 female connector
Shielding	Shielded
Jacket material	PVC
IP rating	IP67
Operating temperature	-20 to 70
Color	Black
Weight	0.159
Product type	NMEA 2000 drop cable
Rayon de courbure dynamique du câble	26
Rayon de courbure statique du câble	13
Cable Current Rating	3
Niveau de flexibilité	Flexible
Cable Jacket Uv Rating Standard	UL 1581
Cable Marking Standard	NMEA 2000
Diamètre extérieur du câble	6.5
Cable Power Conductor Cross Section Mm2	0.32
Cable Power Conductor Gauge Awg	22
Certifications	NMEA 2000
Protocole de communication	NMEA 2000
Compatible device series	All NMEA 2000 compatible devices
Conductor material	Copper
Conductor Material Purity Percent	99.9
Conductor Plating	Tin
Connector color	Black
Connector Contact Base Material	Copper alloy
Placage des contacts	Or
Connector Contact Retention Force N	20
Connector Design Type	Starboard
Connector locking mechanism	Threaded
Connector Micro C Length Mm	45
Connector type	Micro-C NMEA 2000 connectors (male and female)
Compatible CZone	Oui
Dimensions (W x H x D)	2000 x N/A x N/A mm
Type d'interface	NMEA 2000
Mounting type	Not installed
NMEA 2000 certified	Yes
Compatible NMEA 2000	Oui
Poids emballé	0.159
Power source	Powered via NMEA 2000 network
Plage de tension d'alimentation	9-16
Product use	Connect individual devices to the main NMEA 2000 network.
Volume du produit	66
Suivi par numéro de série	none
Tension nominale du câble	300
Wired input	NMEA 2000 male connector
Wired network	NMEA 2000
Wired output	NMEA 2000 female connector

Detailed description

The CZONE NMEA 2000 2-metre T-connector cable (reference 80-911-0118-00) is designed to connect individual devices to the main NMEA 2000 network. It ensures reliable integration compliant with marine standards for your entire onboard electronic system.

Compliance and technical performance

This CZONE T-connector cable features 22 AWG power conductors with an appropriate diameter (approximately 0.32 mm²) for NMEA 2000 T-connector cables. This characteristic, compliant with NMEA 2000 standards, ensures low voltage drop and increased reliability of connections for critical equipment. The cable is NMEA 2000 certified.

Durability and ease of installation

Equipped with connectors featuring gold-plated copper alloy pins and sockets, the cable provides stable, corrosion-resistant connections. Its PVC jacket offers IP67 protection, allowing temporary immersion up to 1 metre. Its more flexible design and reduced diameter compared to backbone cables simplify routing and installation. Additionally, its colour-coded design with black couplers enables easy identification and intuitive assembly with corresponding Ancor T-connectors, ensuring universal compatibility with NMEA 2000 products from all manufacturers.

Expert opinion

Pol CONIN

Digital Manager

« Technical analysis of the CZONE NMEA 2000 2m T-Connector cable »

The choice of an NMEA 2000 T-connector cable, though often underestimated, is critical for the longevity and performance of a network. This 2-meter CZONE T-connector cable is specifically designed to connect sensors and displays to the NMEA 2000 backbone 'tees'. Its flexibility, superior to backbone cables, is a major asset for installations where space is constrained and precise routing is required, particularly in helm consoles or cramped technical compartments.

The 22 AWG (approx. 0.32 mm²) power conductors ensure low voltage drop, a non-negligible aspect over 2-meter lengths, where stable power is essential for the proper operation of connected devices. This feature helps maintain signal and power integrity, reducing the risk of malfunctions or data loss, especially for instruments requiring constant power. It complies with NMEA 2000 standards for T-connector cables, ensuring attention to electrical details essential for network performance.

Installation is simplified by the color-coded couplers, a common feature in NMEA 2000 systems but still an advantage for integrators and recreational boaters. This cable is a reliable option for sailboats and powerboats of all sizes, allowing stable and durable branches without compromising overall network performance. It should be noted that it must not be used as a backbone cable, as its design is optimized for terminal device connections.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

NMEA 2000 2 m T-connector cable

37,06€

37,06€ ~~46,62€~~

Frequently Asked Questions

Need help? Contact us

What is the main function of this NMEA 2000 CZONE drop cable?

This 2-metre NMEA 2000 drop cable from CZONE is designed to connect individual devices to the main NMEA 2000 backbone. It ensures reliable integration compliant with marine standards for your entire onboard electronics system.

What is the length of this NMEA 2000 drop cable?

This NMEA 2000 drop cable is 2 meters long.

What material is the outer jacket of the cable made of?

The outer jacket of this cable is made of PVC, providing robust protection and resistance to marine conditions.

What is the cross-section of the power conductors in this cable?

The power conductors in this CZONE extension cable are 22 AWG, which corresponds to a cross-section of approximately 0.32 mm². This ensures minimal voltage drop.

What is the reference (SKU) for this CZONE cable?

The reference (SKU) for this CZONE NMEA 2000 Y-cable is 80-911-0118-00.

Is this CZONE NMEA 2000 drop cable certified?

Yes, this CZONE NMEA 2000 drop cable is approved and certified, ensuring compliance with marine standards and reliable performance.

What are the characteristics of the connectors on this cable?

The connectors on this cable feature pins and sockets made of gold-plated copper alloy. This design ensures stable connections and excellent resistance to corrosion in the marine environment.

What is the design feature of this cable compared to backbone cables?

This drop cable is distinguished by its more flexible design and reduced diameter compared to NMEA 2000 backbone cables. This feature makes routing and installation easier in confined spaces.

What is the color of the couplers on this cable?

The couplers on this CZONE NMEA 2000 drop cable are black. This color coding allows for easy identification and intuitive assembly with the corresponding Ancor T-connectors.

What is the waterproofing rating of this cable?

The PVC jacket of this cable provides IP67 protection. This means it is dust-tight and can withstand temporary immersion up to 1 meter in depth.

Which brand is this NMEA 2000 drop cable?

This NMEA 2000 drop cable is from the CZONE brand.

Is this cable compatible with other NMEA 2000 equipment not made by CZONE?

Yes, this NMEA 2000 drop cable is designed for universal compatibility with NMEA 2000 products from all manufacturers, thanks to its NMEA 2000 certification and standard connectors.

What type of network is this cable intended for?

This cable is specifically designed for NMEA 2000 networks, allowing individual devices to connect to the network backbone.

Can this cable be used to connect any device to the NMEA 2000 network?

Yes, this drop cable is designed to connect individual NMEA 2000-compliant devices to the backbone network, provided the device has a compatible NMEA 2000 port.

How does this cable make installation easier?

Its more flexible design and reduced diameter compared to backbone cables make routing and installation easier in the boat's tight spaces. Additionally, its color-coded design with black couplers simplifies intuitive assembly with Ancor T-connectors.

How to easily identify the connectors on this cable?

The couplers on this cable are black, making them easy to identify and allowing intuitive assembly with the corresponding Ancor T-connectors.

Can this cable be used in wet environments?

Yes, thanks to its PVC jacket and IP67 protection, this cable is perfectly suited to marine environments and can withstand temporary immersion up to 1 meter in depth without damage.
